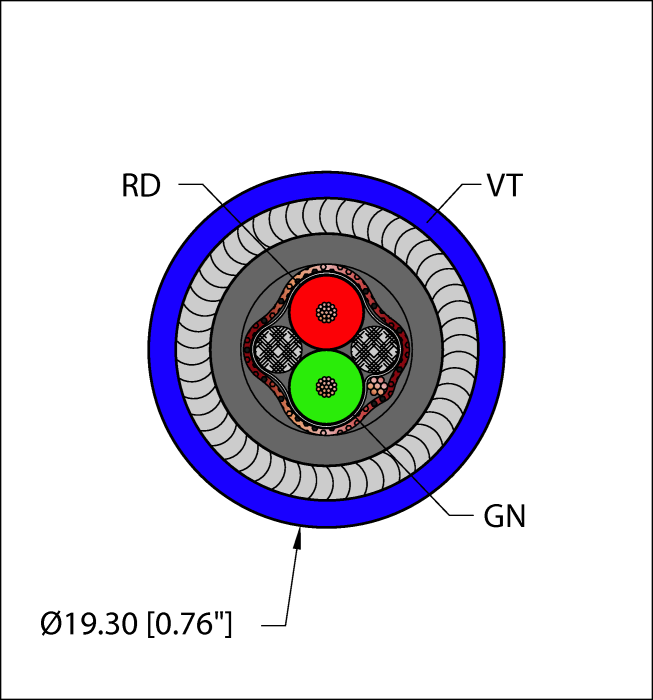

Fieldbus Technology Cable - Reelfast Bulk Cable
SKU: VIO,PVC,2X22,S-FDB,PVC,IAA,ITC,DP
2 · PVC, Violet · Ø 19.3 mm · UL 2250 ITC, UL 13 PLTC, Sunlight Resistant, -40C Cold Bend, Oil Res I
$16.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Fieldbus Technology Cable — Reelfast Bulk Cable
- Interlocked Aluminum Armor
- Fieldbus Technology Cable
- fieldbus type: PROFIBUS-DP, PVC jacket,Violet, cable armor: IAA, shielded, 2X22 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, CSA FT1, CSA FT4, IEC 60332-3-22
- ITC 150V
- PLTC 300V
- ACIC 300V
The Turck Fieldbus Technology Cable - Reelfast Bulk Cable VIO,PVC,2X22,S-FDB,PVC,IAA,ITC,DP is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8544493080 |
| Country of origin | MX |
| Weight | 1100 g |
| Cable Platform | Fieldbus Technology Cable |
| Number of Conductors | 2 |
| Conductor size | 22 AWG [Similar to 0.34 mm²] |
| Fieldbus Protocol | PROFIBUS-DP |
| Cable diameter | Ø 19.3 mm |
| Cable jacket | PVC, Violet |
| Shield | BraidDrainFoil |
| UL Approvals | UL 2250 ITC, UL 13 PLTC, Sunlight Resistant, -40C Cold Bend, Oil Res I |
| CSA Approvals | CSA C22.2 No.239 ACIC, Hazardous Location-ABCD, CSA FT1, CSA FT4, Sunlight Resistant |
| Compliances | RoHS, CE |
