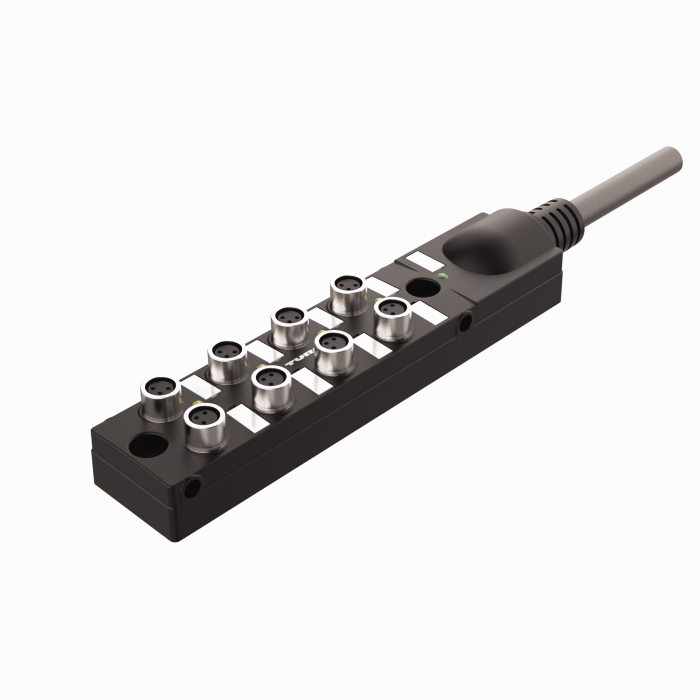

Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun
SKU: TB-8M8M-3N2-10/S101
8 · Cable, Side exit · 30 V · CE, UKCA, RoHS
$322.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Passive Actuator/Sensor Junction Box, 8 Ports — M8, 3 pole I/O port with cable homerun
- Housing material: Nylon
- Housing color: Black
- Fully encapsulated
- Protection class: IP67, IP68, IP69, IP69K; NEMA 1, 3, 4, 6P, 12
- RoHS compliant
- CE compliant
- LED (NPN circuit)
- I/O port: 3-pin
- Black TPE jacket, 12X24 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- Flexlife and C-Track Approved
The Turck Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun TB-8M8M-3N2-10/S101 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8544429090 |
| Country of origin | US |
| Weight | 1100 g |
| Application | Signal |
| Number of ports | 8 |
| Display switching state | LED, yellow |
| Switching function | NPN |
| I/O Port | Female, M8 × 1 |
| Number of contacts | 3 |
| Homerun connector | Cable, Side exit |
| Cable length (L) | 10.0 m |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per signal contact, total current 6 A |
| Approvals | CE, UKCA, RoHS |
| Connector Series | M8 picofast |
