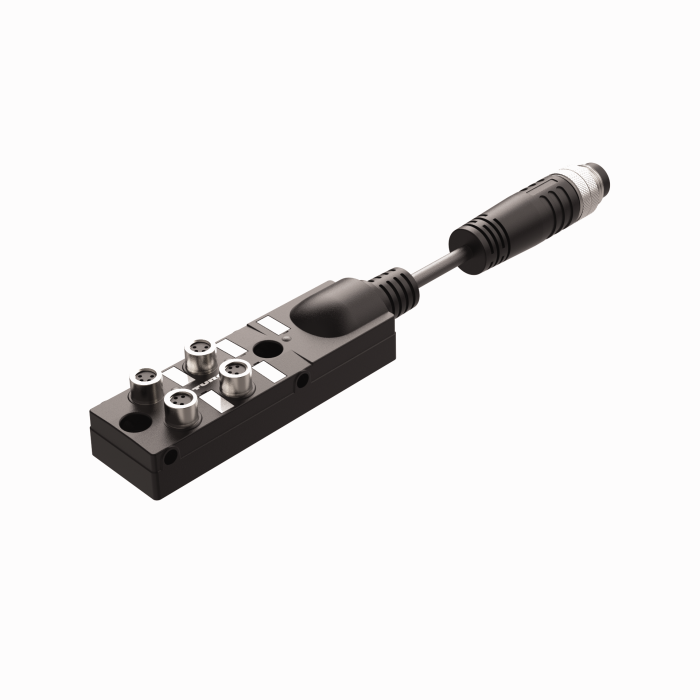

Passive Actuator/Sensor Junction Box, 4 Ports - M8, 4 pole I/O port with cable homerun
SKU: TB-4M8M-4-0.3-BSM14
View all 3 variants in this family
4 · Male, M16 × 0.75 with cable, Side exit · 30 V · CE, UKCA, RoHS
$206.50
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Passive Actuator/Sensor Junction Box, 4 Ports — M8, 4 pole I/O port with cable homerun
- Housing material: Nylon
- Housing color: Black
- Fully encapsulated
- Protection class: IEC: IP67
- RoHS compliant
- CE compliant
- I/O port: 4-pin
- General Purpose Cable
- Black PVC jacket, shielded, 12X24 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
The Turck Passive Actuator/Sensor Junction Box, 4 Ports - M8, 4 pole I/O port with cable homerun TB-4M8M-4-0.3-BSM14 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101560398 |
| Customs tariff number | 8536908530 |
| Country of origin | MX |
| Weight | 140.71 g |
| Number of ports | 4 |
| I/O Port | Female, M8 × 1 |
| Number of contacts | 14 |
| Homerun connector | Male, M16 × 0.75 with cable, Side exit |
| Cable length (L) | 0.30 m |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per signal contact, total current 6 A |
| Approvals | CE, UKCA, RoHS |
| Connector Series | M8 picofast |
