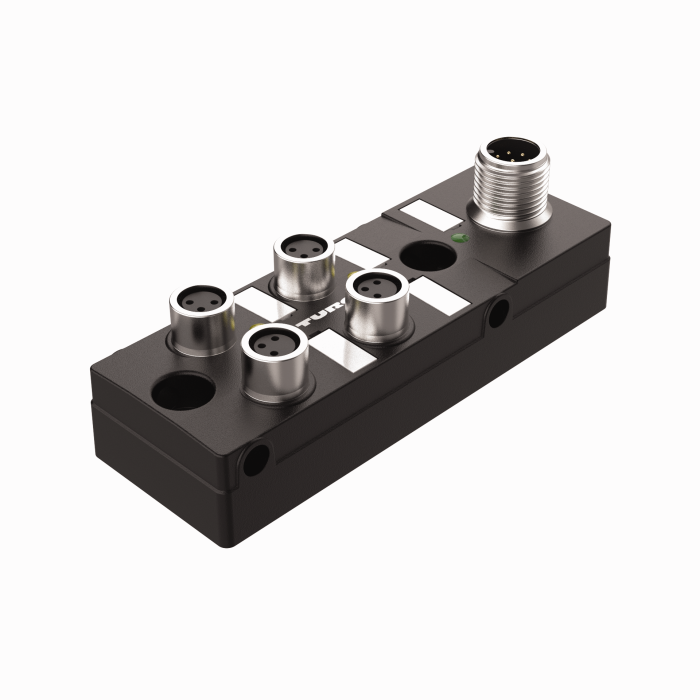

Passive Actuator/Sensor Junction Box, 4 Ports - M8 x 1 I/O port with M12 homerun
SKU: TB-4M8M-3N2-FS8
4 · Male, M12 × 1, Top exit · 30 V · CE, UKCA, RoHS
$122.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Passive Actuator/Sensor Junction Box, 4 Ports — M8 x 1 I/O port with M12 homerun
- Housing material: PA 6 GF30
- Housing color: Black
- Fully encapsulated
- Protection class: IP67, IP68, IP69, IP69K; NEMA: 1, 3, 4, 6P
- CE compliant
- RoHS compliant
- LED (NPN circuit)
- I/O port: 3-pin
The Turck Passive Actuator/Sensor Junction Box, 4 Ports - M8 x 1 I/O port with M12 homerun TB-4M8M-3N2-FS8 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101469509 |
| Customs tariff number | 8536908530 |
| Country of origin | MX |
| Weight | 13617.6 g |
| Number of ports | 4 |
| Display switching state | LED, yellow |
| Switching function | NPN |
| I/O Port | Female, M8 × 1 |
| Number of contacts | 8 |
| Homerun connector | Male, M12 × 1, Top exit |
| Housing material | Plastic, PA6-GF30 |
| Voltage | 30 V |
| Ampacity | 2 A per contact, total current 2 A |
| Approvals | CE, UKCA, RoHS |
| Connector Series | M8 picofast |
