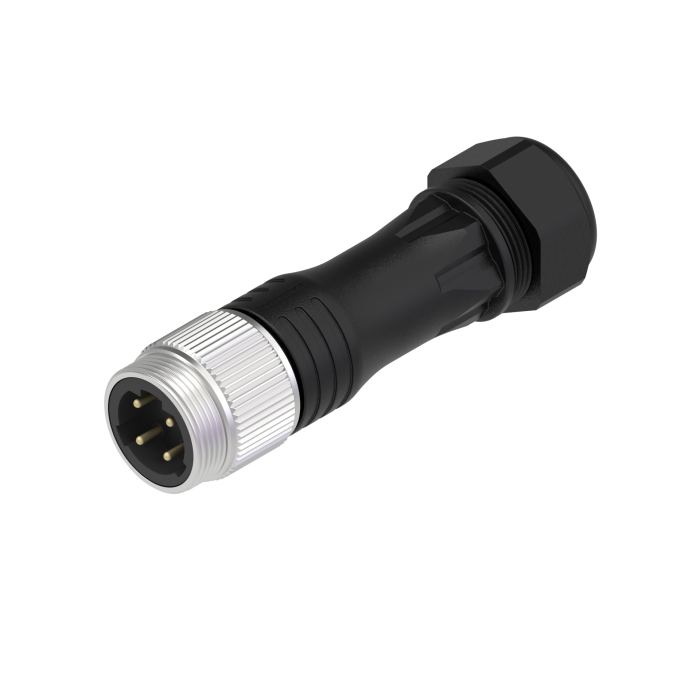

Power Field Wireable - Field-Wireable Connector
SKU: RSMC 42-0
Male, 1 1/8″-16 UN, Straight · 4 · Brass, CuZn, Nickel-plated
$95.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Power Field Wireable — Field-Wireable Connector
- Straight Male 1 1/8" Powerfast Field Wireable
- 4 pins
- Screw termination
- Plastic housing
- 1 1/8-16UN, Minifast, Male, Straight, 4-pin
- Screw terminal Wire Termination
- Plastic housing
The Turck Power Field Wireable - Field-Wireable Connector # RSMC 42-0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101627596 |
| Customs tariff number | 8536698000 |
| Country of origin | MX |
| Weight | 1 g |
| Application | Power (>11 Amps) |
| Connector A | Male, 1 1/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 13…18 mm |
| Core cross-section/Clamping ability | 12 mm² |
| Voltage | 600 V |
| Current | 25 A |
| Connector Series | 1 1/8" minifast |
