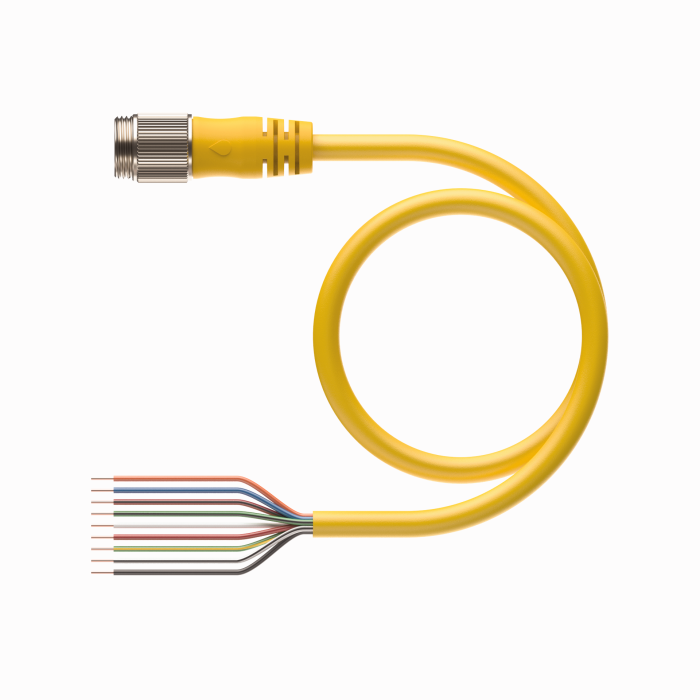

Actuator and Sensor Cable - Connection Cable
SKU: RSM 96-0.5M
View all 15 variants in this family
7 A · PVC, Yellow · Brass, CuZn, Nickel-plated · Ø 11.3 mm
$74.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Cable — Connection Cable
- 1-1/8” Male, Straight, 9-pin
- Instrumentation Tray Cable
- Yellow PVC jacket, 9X16 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
The Turck Actuator and Sensor Cable - Connection Cable RSM 96-0.5M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 1.1 g |
| Application | Signal |
| Design | Single-ended |
| Connector A | Male, 1 1/8″-16 UN, Straight |
| Number of contacts | 9 |
| Connector body | Plastic, TPU, Yellow |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 7 A |
| Cable diameter | Ø 11.3 mm |
| Cable jacket | PVC, Yellow |
| Number of Conductors | 9 |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | CE, RoHS, UL Listed, UL 2238 |
| Connector Series | 1 1/8" minifast |
