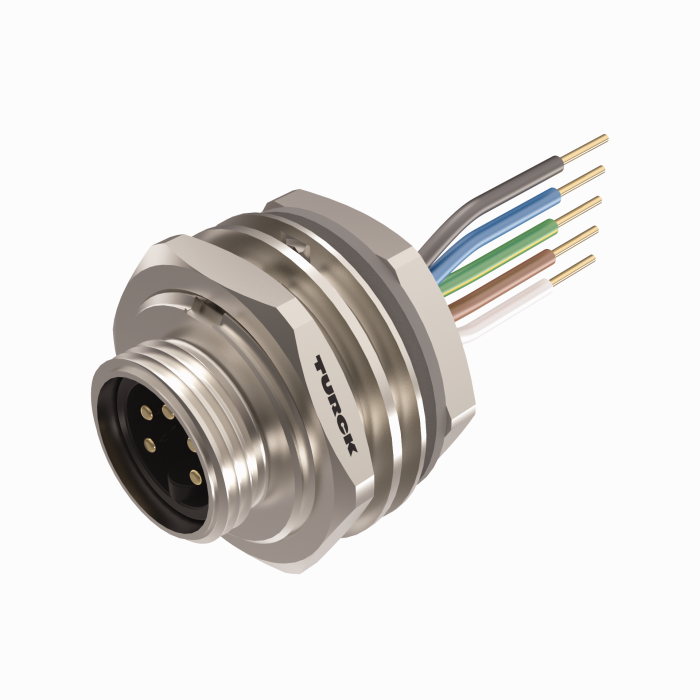

Actuator and Sensor Receptacle - Rear Mount
SKU: RSFP 50-0.2M
View all 6 variants in this family
Male, 7/8″-16 UN · 5 · Brass, CuZn, Nickel-plated · 8 A · UL 2238, CSA C22.2 No. 182.3, CE, RoHS
$44.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Receptacle — Rear Mount
- 7/8″ Minifast, Male, Receptacle, 5 pin
- Mounting thread: M30 × 1.5
The Turck Actuator and Sensor Receptacle - Rear Mount RSFP 50-0.2M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536694020 |
| Country of origin | MX |
| Weight | 1000 g |
| Application | Signal |
| Connector A | Male, 7/8″-16 UN |
| Number of contacts | 5 |
| Housing material/finish | Brass, CuZn, Nickel-plated |
| Mounting orientation | Rear mount |
| Mounting thread | M30 × 1.5 |
| Voltage | 600 V |
| Current | 8 A |
| Length (L) | 0.20 m |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
| Connector Series | 7/8" minifast |
