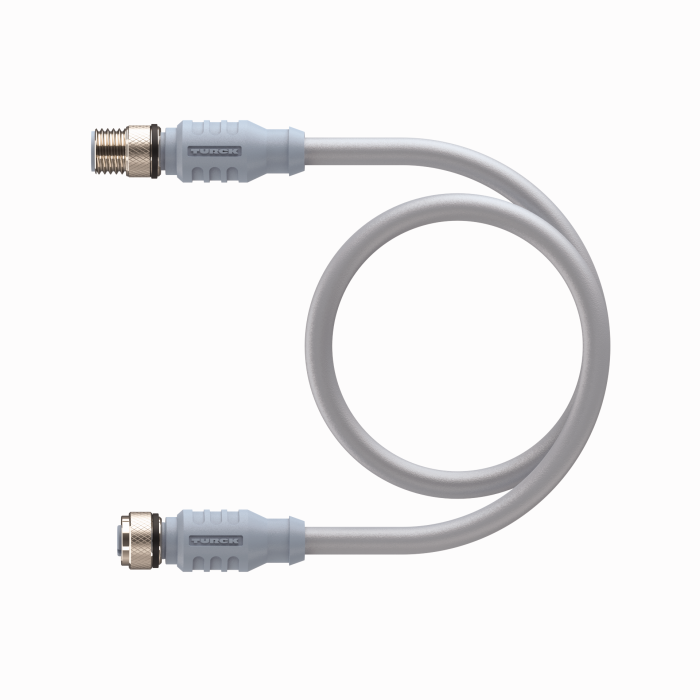

Cable for DeviceNet and CANopen - Extension Cable
SKU: RSC RKC 572-0.4M
View all 75 variants in this family
4 A · PVC, Gray · Brass, CuZn, Nickel-plated · Ø 7.24 mm
$38.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Cable for DeviceNet and CANopen — Extension Cable
- M12, Male, Straight, 5-pin, A-Code
- M12, Female, Straight, 5-pin, A-Code
- Shielded Twisted Pair
- Fieldbus Technology Cable
- fieldbus type: DeviceNet, Gray PVC jacket, shielded, 2STPX22 AWG
- Sunlight Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
The Turck Cable for DeviceNet and CANopen - Extension Cable # RSC RKC 572-0.4M is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 1.1 g |
| Application | Data |
| Design | Double-ended |
| Connector A | Male, M12 × 1, Straight, A-code |
| Number of contacts | 5 |
| Connector body | Plastic, TPU, Blue gray |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Female, M12 × 1, Straight, A-code |
| Fieldbus Protocol | DeviceNet |
| Voltage | 250 V |
| Current | 4 A |
| Cable diameter | Ø 7.24 mm |
| Cable jacket | PVC, Gray |
| Protection class (When coupled) | IP68, IP69K |
| Special Features | Shielded |
| Approvals | FM Div.2, CSA PA, UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Connector Series | Fieldbus |
