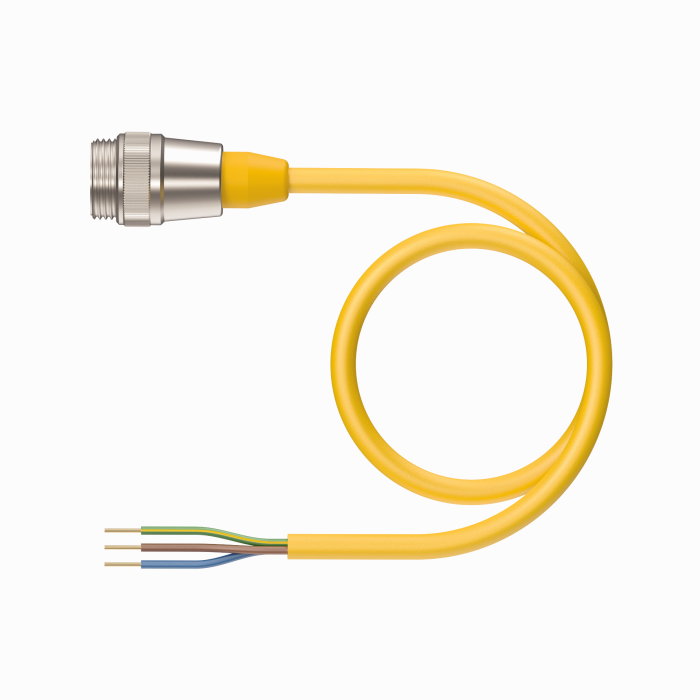

Actuator and Sensor Cable - Connection Cable
SKU: RKM 30-2M/S90
View all 17 variants in this family
9 A · TPU, Yellow · Brass, CuZn, Nickel-plated · Ø 5.97 mm
$30.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Cable — Connection Cable
- 7/8″ female connector, straight, 3-pin
- Jacket material: TPU
- Jacket color: yellow
- Protection class: IP67, IP68, IP69, IP69K
- 7/8” Female, Straight, 3-pin
- General Purpose Cable
- Yellow TPU jacket, 3X18 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
The Turck Actuator and Sensor Cable - Connection Cable # RKM 30-2M/S90 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101305104 |
| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 163.18 g |
| Application | Signal |
| Design | Single-ended |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 3 |
| Connector body | Plastic, TPU, Yellow |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Voltage | 600 V |
| Current | 9 A |
| Cable diameter | Ø 5.97 mm |
| Length (L) | 2.0 m |
| Cable jacket | TPU, Yellow |
| Number of Conductors | 3 |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, RoHS |
| Connector Series | 7/8" minifast |
