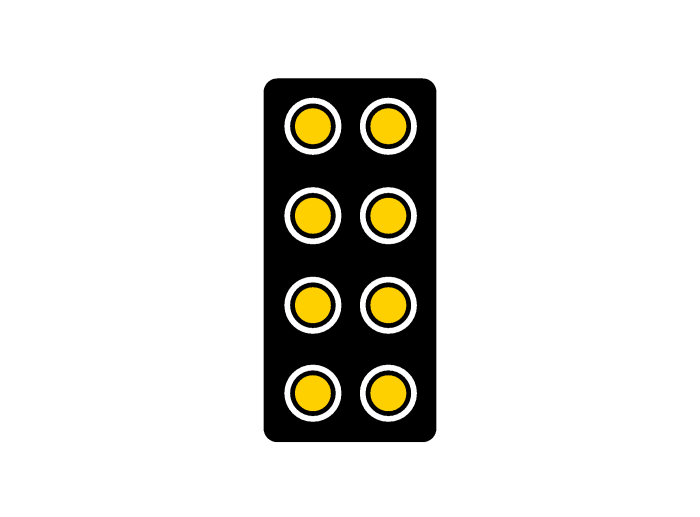

Hazardous Location Junction Box - 8 Port
SKU: P-8 RKF 40-RSF190
8 · Male, 1 1/8″-16UN, Side exit · 300 V · FM Div.1, FM Div.2
$317.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Hazardous Location Junction Box — 8 Port
- 7/8" Minifast Junction Box
- 8 ports
- Side exit 1 1/8" Minifast home run connector
- Aluminum housing
The Turck Hazardous Location Junction Box - 8 Port P-8 RKF 40-RSF190 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8544429090 |
| Country of origin | US |
| Weight | 1181.78 g |
| Application | Hazardous Location |
| Number of ports | 8 |
| I/O Port | Female, 7/8″-16 UN |
| Signals Per Port | 1 |
| Homerun connector | Male, 1 1/8″-16UN, Side exit |
| Housing material | Aluminum |
| Voltage | 300 V |
| Current Per Port | 2 A |
| Approvals | FM Div.1, FM Div.2 |
| Connector Series | 7/8" minifast |
