Actuator and Sensor Cable - Extension Cable
SKU: EKWB-ESWB-A5.500-GU24-0.6
View all 8 variants in this family
4 A · TPU, Gray · Brass, CuZn, Nickel-plated · Ø 5.33 mm
$40.20
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

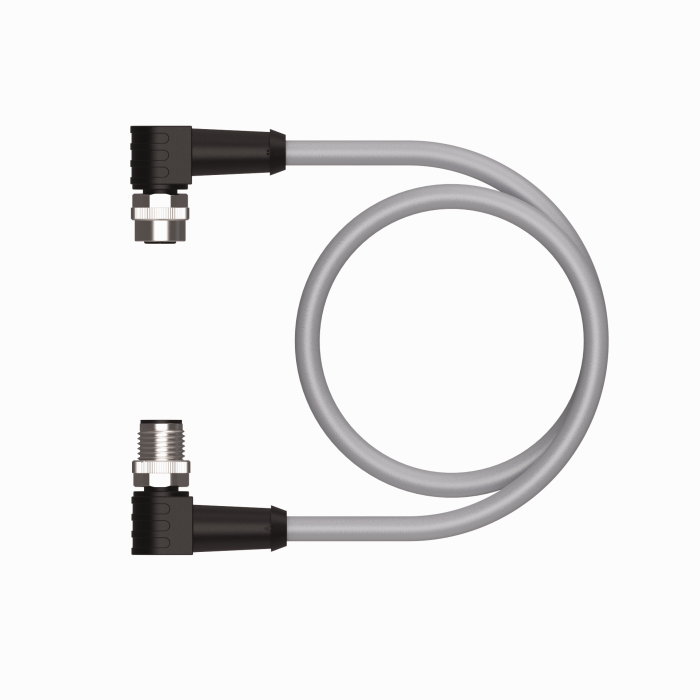

Actuator and Sensor Cable — Extension Cable
- M12, Female, Right angle, 5-pin
- M12, Male, Right angle, 5-pin
- General Purpose Cable
- TPU jacket, Gray, 5X22 AWG
- -40 Cold Bend Rating
- Flame Ratings: UL1061, CSA FT1
- Flexlife and C-Track Approved
The Turck Actuator and Sensor Cable - Extension Cable # EKWB-ESWB-A5.500-GU24-0.6 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 0 g |
| Application | Signal |
| Design | Double-ended |
| Connector A | Female, M12 × 1, Right angle, A-code |
| Number of contacts | 5 |
| Connector body | Plastic, TPU, Black |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Male, M12 × 1, Right angle, A-code |
| Current | 4 A |
| Cable diameter | Ø 5.33 mm |
| Cable jacket | TPU, Gray |
| Number of Conductors | 5 |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Connector Series | M12 Hydra |
