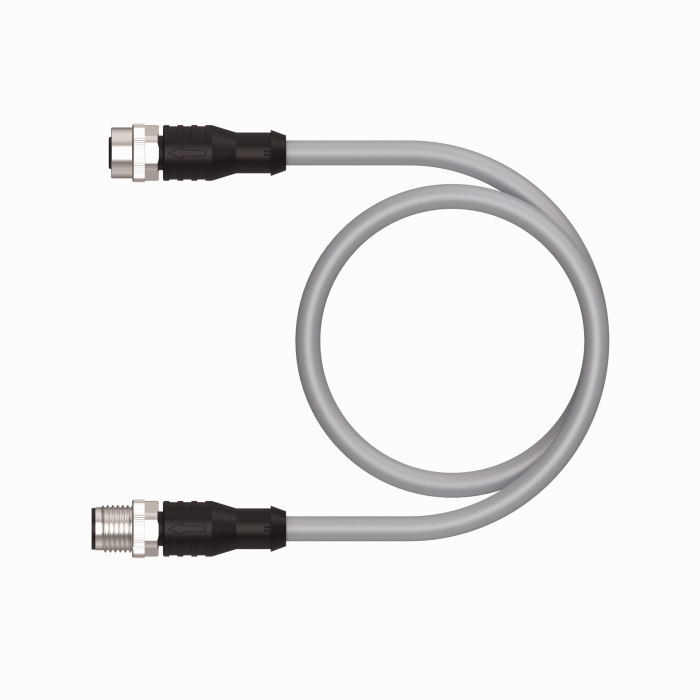

Actuator and Sensor Cable - Extension Cable
SKU: EKRB-ESRB-B5.5GD-GC14-0.2
View all 11 variants in this family
4 A · PVC, Gray · Brass, CuZn, Nickel-plated · Ø 5.97 mm
$36.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Cable — Extension Cable
- M12, Female, Straight, 5-pin
- B-code (reverse key)
- M12, Male, Straight, 5-pin
- B-code (reverse key)
- Instrumentation Tray Cable
- Gray PVC jacket, 1X20+4X22 AWG
- Sunlight Resistant
- -40 Cold Bend Rating
- Oil Resistant
- Flame Ratings: UL 1685 FT4, UL1061, CSA FT4
The Turck Actuator and Sensor Cable - Extension Cable # EKRB-ESRB-B5.5GD-GC14-0.2 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250107 -/- Connection cable sensor-actuator |
| Customs tariff number | 8544429090 |
| Country of origin | MX |
| Weight | 0 g |
| Application | Signal |
| Design | Double-ended |
| Connector A | Female, M12 × 1, Straight, B-code |
| Number of contacts | 5 |
| Connector body | Plastic, TPU, Black |
| Coupling nut | Brass, CuZn, Nickel-plated |
| Connector B | Male, M12 × 1, Straight, B-code |
| Current | 4 A |
| Cable diameter | Ø 5.97 mm |
| Cable jacket | PVC, Gray |
| Number of Conductors | 1 |
| Protection class (When coupled) | IP67, IP68, IP69, IP69K |
| Approvals | UL 2238, CSA C22.2 No. 182.3, CE, UKCA, RoHS |
| Connector Series | M12 Hydra |
