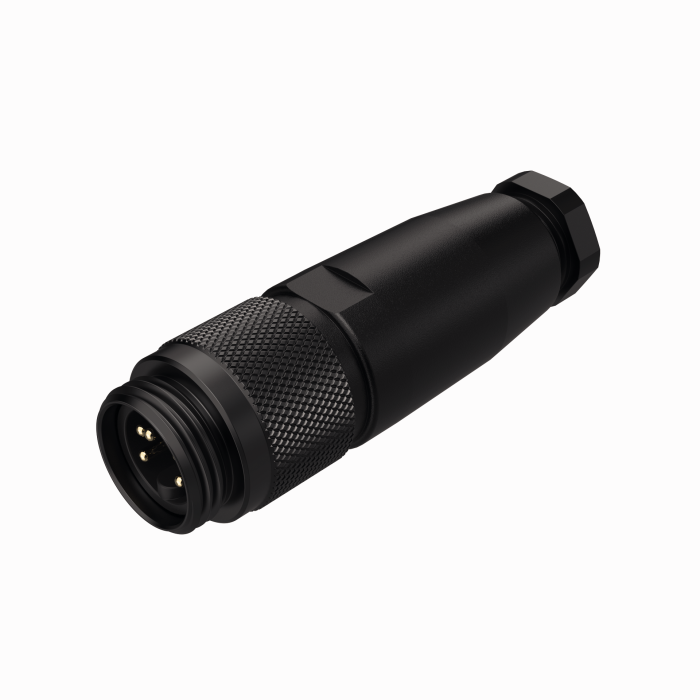

DeviceNet Field Wireable - 7/8″ Male, Straight
SKU: BSV4157-0/9
Male, 7/8″-16 UN, Straight · 5 · Aluminum, Al, Anodized
$55.80
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
DeviceNet Field Wireable — 7/8″ Male, Straight — 7/8″ Male, Straight
- Straight Male 7/8″ Minifast Field Wireable
- 5 pins
- Screw termination
- Plastic housing
- 5-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
The Turck DeviceNet Field Wireable - 7/8″ Male, Straight # BSV4157-0/9 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101510904 |
| eCl@ss-Code (V5.1.4) | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 85366990990 |
| Country of origin | CZ |
| Weight | 76 g |
| Application | Data |
| Fieldbus Protocol | DeviceNet |
| Connector A | Male, 7/8″-16 UN, Straight |
| Number of contacts | 5 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA 66 |
| Coupling nut/screw material | Aluminum, Al, Anodized |
| Acceptable cable diameter | 6…8 mm |
| Core cross-section/Clamping ability | 0.14…1.5 mm² |
| Voltage | 250 V |
| Current | 9 A |
| Connector Series | M12 eurofast |
