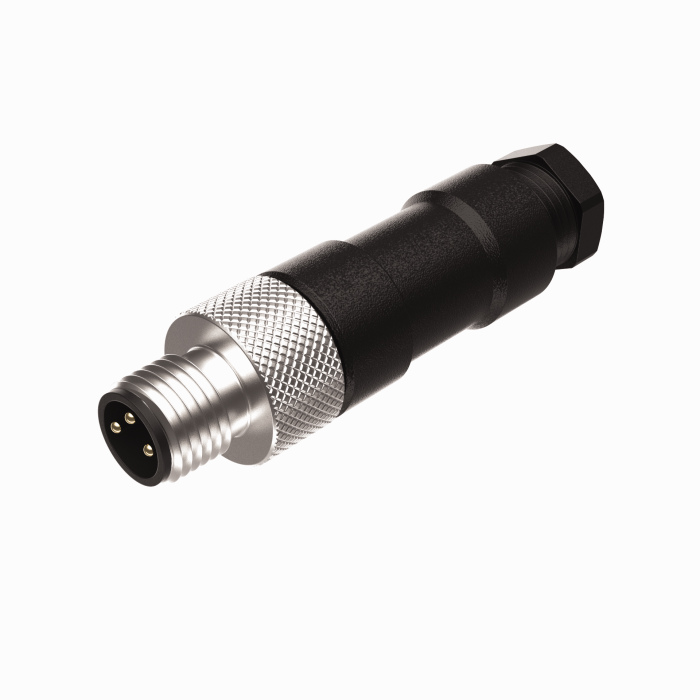

Actuator and Sensor Field Wireable - M8 × 1, Male, Straight
SKU: BS 5131-0
Male, M8 × 1, Straight · 3 · Brass, CuZn, Nickel-plated · RoHS
$24.60
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Field Wireable — M8 × 1, Male, Straight
- 3 Pins
- Solder Wire Termination
- Plastic Housing
The Turck Actuator and Sensor Field Wireable - M8 × 1, Male, Straight # BS 5131-0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536904000 |
| Country of origin | DE |
| Weight | 10.21 g |
| Application | Signal |
| Connector A | Male, M8 × 1, Straight |
| Number of contacts | 3 |
| Connection mode | Solder contact |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 3…5 mm |
| Core cross-section/Clamping ability | 24 mm² |
| Current | 4 A |
| Approvals | RoHS |
| Connector Series | M8 picofast |
