Actuator and Sensor Field Wireable - 7/8” Connection
SKU: BS 4241-0/9
Male, 7/8″-16 UN, Right angle · 4 · Zinc-Aluminum, CuZn, Nickel-plated · UL Recognized, RoHS
$39.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

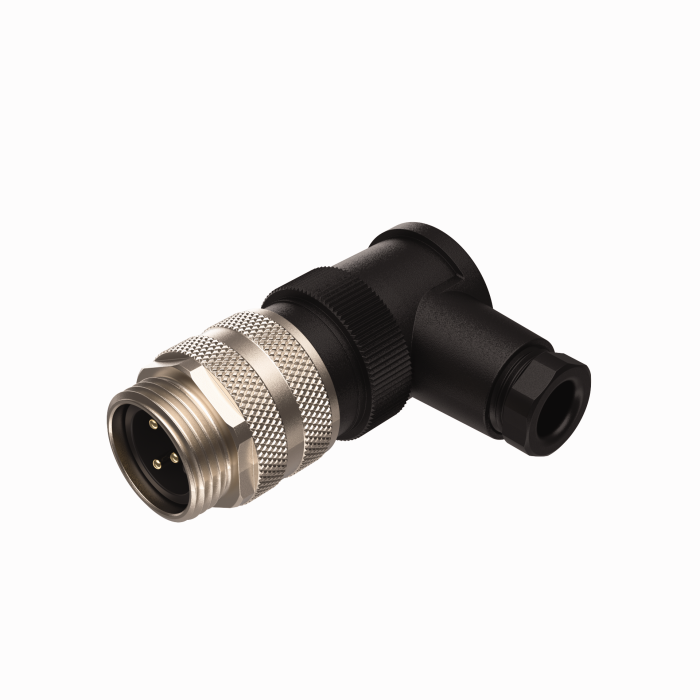

Actuator and Sensor Field Wireable — 7/8” Connection
- 7/8” Male, Right-angle, 4-pin
- Plastic Housing
- Screw terminal Wire Termination
The Turck Actuator and Sensor Field Wireable - 7/8” Connection # BS 4241-0/9 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536904000 |
| Country of origin | DE |
| Weight | 56.74 g |
| Application | Signal |
| Connector A | Male, 7/8″-16 UN, Right angle |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Zinc-Aluminum, CuZn, Nickel-plated |
| Acceptable cable diameter | 6…8 mm |
| Voltage | 600 V |
| Current | 9 A |
| Approvals | UL Recognized, RoHS |
| Connector Series | 7/8" minifast |
