Actuator and Sensor Field Wireable - 7/8” Connection
SKU: BS 4161-0 5-13MM
Male, 7/8″-16 UN, Straight · 6 · Aluminum, CuZn, Anodized · UL Recognized, RoHS
$48.10
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

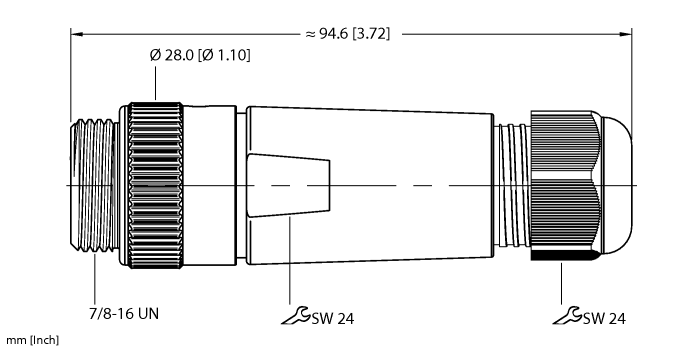

Actuator and Sensor Field Wireable — 7/8” Connection
- 7/8” Male, Straight, 6-pin
- Plastic Housing
- Screw terminal Wire Termination
- Plastic housing
The Turck Actuator and Sensor Field Wireable - 7/8” Connection # BS 4161-0 5-13MM is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101494303 |
| Customs tariff number | 8536694020 |
| Country of origin | US |
| Weight | 53.56 g |
| Application | Signal |
| Connector A | Male, 7/8″-16 UN, Straight |
| Number of contacts | 6 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Aluminum, CuZn, Anodized |
| Acceptable cable diameter | 5…13 mm |
| Voltage | 600 V |
| Current | 8 A |
| Approvals | UL Recognized, RoHS |
| Connector Series | 7/8" minifast |
