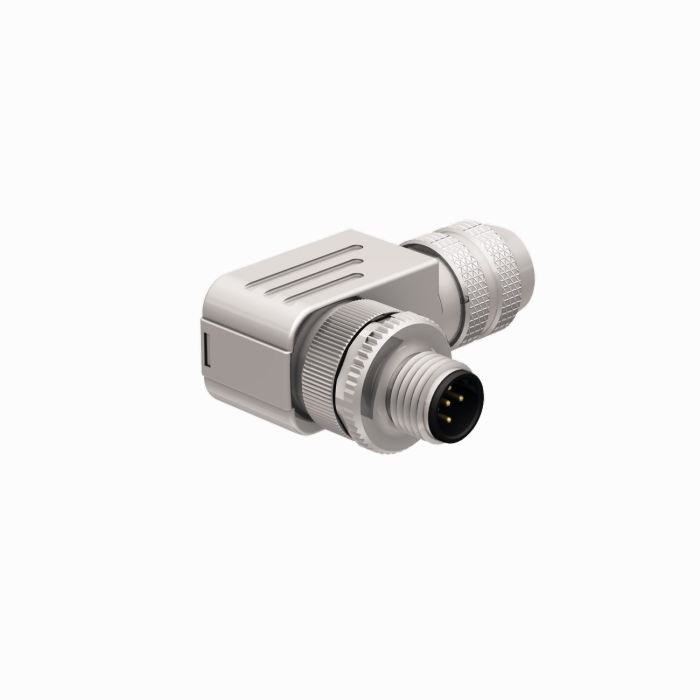

Field-Wireable Connector
SKU: BMSWS8251-8.5
Male, M12 × 1, Angled, B-code · 5 · Die-cast Zinc, GD-Zn, Nickel-plated · cULus recognized
$45.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Field-Wireable Connector — Male Connector M12 × 1, Angled
- For use in PROFIBUS-DP applications
- Up to 12 Mbps
- Shielding via iris spring connection
- B-coding
- Metal housing
- Screw-clamp terminal
- 5-pin
- M18 × 1 metric screw-in thread
- Cable diameter 6.0…8.5 mm
The Turck Field-Wireable Connector # BMSWS8251-8.5 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101458565 |
| eCl@ss-Code (V5.1.4) | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 8536504000 |
| Country of origin | CN |
| Weight | 69 g |
| Application | Data |
| Fieldbus Protocol | PROFIBUS-DP |
| Connector A | Male, M12 × 1, Angled, B-code |
| Number of contacts | 5 |
| Connection mode | Screw/clamp connection |
| Mounting thread | M18 × 1 |
| Housing material | Brass, CuZn, nickel-plated |
| Coupling nut/screw material | Die-cast Zinc, GD-Zn, Nickel-plated |
| Acceptable cable diameter | 6…8.5 mm |
| Core cross-section/Clamping ability | 0.14…0.75 mm² |
| Voltage | 125 V |
| Current | 4 A |
| Approvals | cULus recognized |
| Connector Series | M12 eurofast |
