Field-Wireable Connector
SKU: BKV4140-0/9
Female, 7/8″-16 UN, Straight · 4 · Stainless Steel, 1.4404, Passivated
$60.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

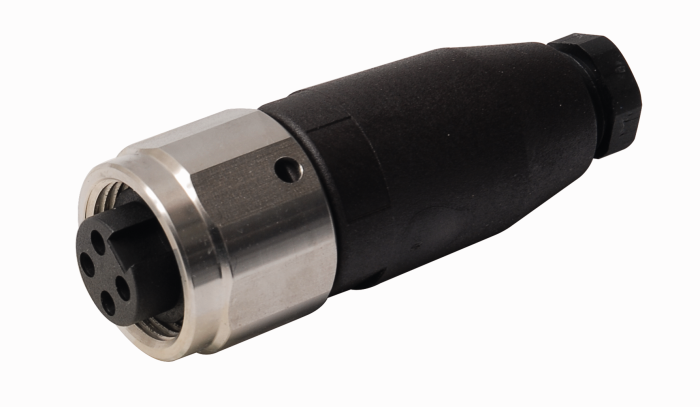

Field-Wireable Connector — 7/8″ Female, Straight
- For use in PROFIBUS-PA and FOUNDATION fieldbus applications
- Screw-clamp terminal
- Stainless steel coupling nut
- 4-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
The Turck Field-Wireable Connector BKV4140-0/9 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101510829 |
| eCl@ss-Code (V5.1.4) | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 8536694020 |
| Country of origin | HU |
| Weight | 68 g |
| Application | Data |
| Fieldbus Protocol | PROFIBUS-PA |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Mounting thread | PG9 |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Stainless Steel, 1.4404, Passivated |
| Acceptable cable diameter | 6…8 mm |
| Core cross-section/Clamping ability | 0.14…1 mm² |
| Voltage | 250 V |
| Current | 9 A |
| Connector Series | 7/8" minifast,FF |
