Actuator and Sensor Field Wireable
SKU: BK 19-0
Female, M16 × 0.75, Straight · 19 · Brass, CuZn, Nickel-plated
$50.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

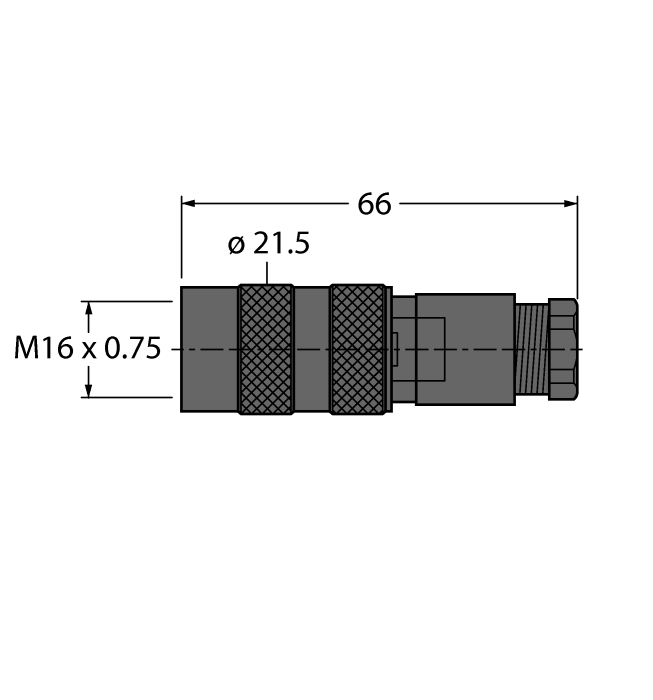

Actuator and Sensor Field Wireable — Female M16 × 0.75, straight
- Straight Female M16 versafast Field Wireable
- Solder termination
- Plastic housing
- Solder connection
- 19-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
The Turck Actuator and Sensor Field Wireable # BK 19-0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101281019 |
| eCl@ss-Code (V5.1.4) | 27279201 -/- Connectivity (accessories sensors) |
| Customs tariff number | 8536694020 |
| Country of origin | DE |
| Weight | 43 g |
| Application | Signal |
| Connector A | Female, M16 × 0.75, Straight |
| Number of contacts | 19 |
| Connection mode | Solder contact |
| Mounting thread | PG9 |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 6…8 mm |
| Core cross-section/Clamping ability | 0.14…0.25 mm² |
| Voltage | 30 V |
| Current | 3 A |
| Connector Series | M16 versafast |
