Actuator and Sensor Field Wireable - M12 Connection
SKU: B 8151-0/PG9/LABEL
Female, M12 × 1, Straight, A-code · 5 · Plastic, PA · UL Recognized, RoHS
$33.00
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

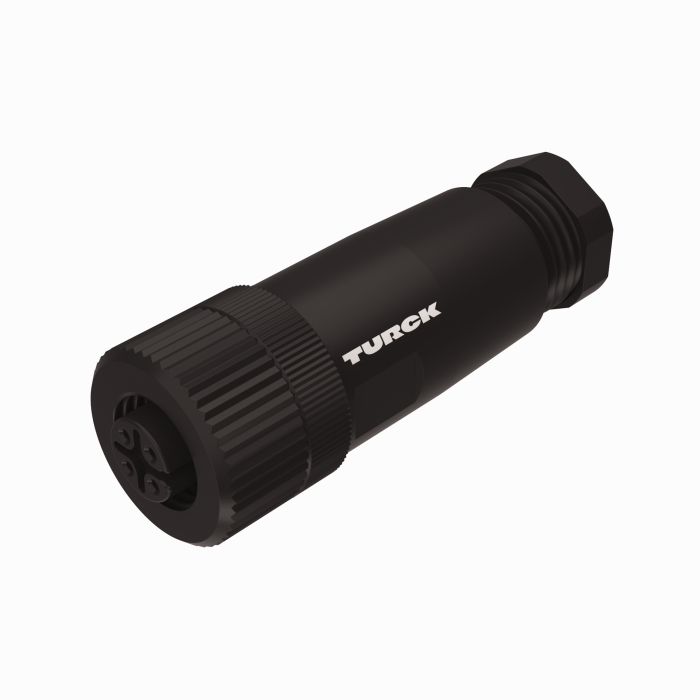

Actuator and Sensor Field Wireable — M12 Connection
- Straight Female M12 Eurofast Field Wireable
- 5 pins
- Screw termination
- Plastic housing
- M12, Female, Straight, 5-pin
- PG9 screw-in thread
- Cable feedthrough 6.0…8.0 mm
The Turck Actuator and Sensor Field Wireable - M12 Connection # B 8151-0/PG9/LABEL is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101565188 |
| Customs tariff number | 8536694020 |
| Country of origin | DE |
| Weight | 18 g |
| Application | Signal |
| Connector A | Female, M12 × 1, Straight, A-code |
| Number of contacts | 5 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Plastic, PA |
| Acceptable cable diameter | 6…8 mm |
| Core cross-section/Clamping ability | 0.14…18 mm² |
| Voltage | 60 V |
| Current | 4 A |
| Approvals | UL Recognized, RoHS |
| Connector Series | M12 eurofast |
