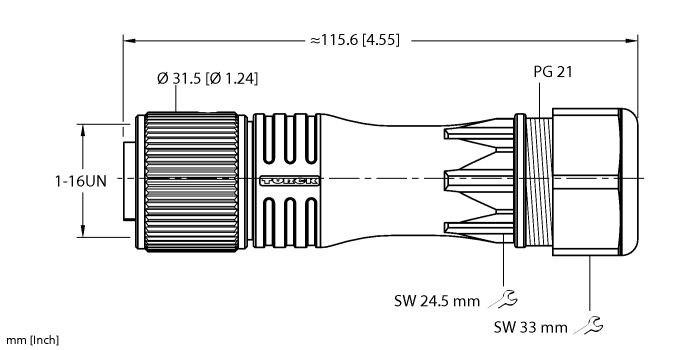

Actuator and Sensor Field Wireable - 1” Connection
SKU: B 716B61-0/21
Female, 1″-16 UN, Straight · 6 · Brass, CuZn, Nickel-plated
$105.70
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Field Wireable — 1” Connection
- 1” Female, Straight, 6-pin
- Plastic Housing
- Screw terminal Wire Termination
- Plastic housing
The Turck Actuator and Sensor Field Wireable - 1” Connection # B 716B61-0/21 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101565959 |
| Customs tariff number | 8309900090 |
| Country of origin | MX |
| Weight | 109 g |
| Application | Signal |
| Connector A | Female, 1″-16 UN, Straight |
| Number of contacts | 6 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 9…16 mm |
| Voltage | 600 V |
| Current | 8 A |
| Connector Series | 1" minifast |
