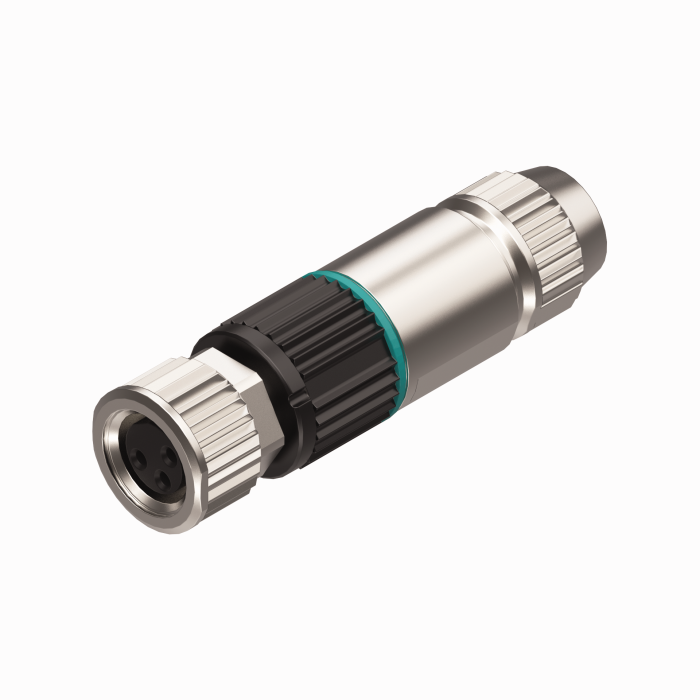

Actuator and Sensor Field Wireable - M8 × 1 Female Connector, Straight
SKU: B 5136-0
Female, M8 × 1, Straight · 3 · Die-cast Zinc, CuZn, Nickel-plated · RoHS
$27.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Field Wireable — M8 × 1 Female Connector, Straight
- M8 female connector, straight, 3-pin
- Metal coupling nut
- Cable feedthrough 4.0…5.1 mm
- Penetration technology
- Protection class IP67
- 3 Pins
- Insulation displacement Wire Termination
- Plastic Housing
The Turck Actuator and Sensor Field Wireable - M8 × 1 Female Connector, Straight # B 5136-0 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101630992 |
| Customs tariff number | 8536694020 |
| Country of origin | DE |
| Weight | 15.89 g |
| Application | Signal |
| Connector A | Female, M8 × 1, Straight |
| Number of contacts | 3 |
| Connection mode | Insulation displacement terminal |
| Housing material | Die-cast Zinc, PA |
| Coupling nut/screw material | Die-cast Zinc, CuZn, Nickel-plated |
| Acceptable cable diameter | 2.5…5.1 mm |
| Core cross-section/Clamping ability | 0.14…0.34 mm² |
| Voltage | 32 V |
| Current | 4 A |
| Approvals | RoHS |
| Connector Series | M8 picofast |
