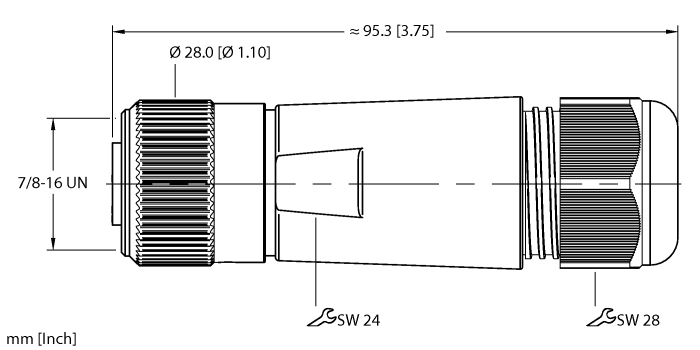

Actuator and Sensor Field Wireable - 7/8” Connection
SKU: B 4161-0 8-17MM
Female, 7/8″-16 UN, Straight · 6 · Brass, CuZn, Nickel-plated · UL Recognized, RoHS
$53.40
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Field Wireable — 7/8” Connection
- Screw terminal Wire Termination
- Plastic housing
The Turck Actuator and Sensor Field Wireable - 7/8” Connection # B 4161-0 8-17MM is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| Customs tariff number | 8536694020 |
| Country of origin | US |
| Weight | 61.73 g |
| Application | Signal |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 6 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PA |
| Coupling nut/screw material | Brass, CuZn, Nickel-plated |
| Acceptable cable diameter | 8…17 mm |
| Voltage | 600 V |
| Current | 8 A |
| Approvals | UL Recognized, RoHS |
| Connector Series | 7/8" minifast |
