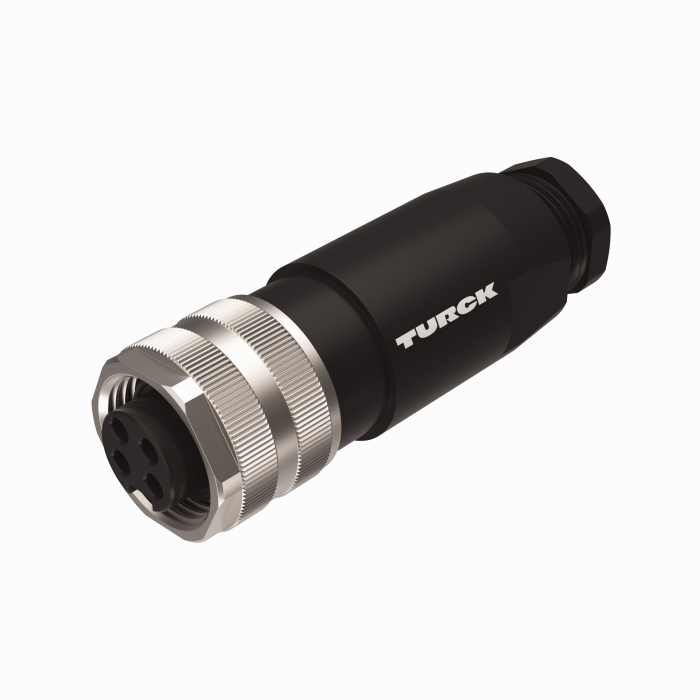

Actuator and Sensor Field Wireable - 7/8” Connection
SKU: B 4141-0/13.5
Female, 7/8″-16 UN, Straight · 4 · Die-cast Zinc, CuZn, Nickel-plated · UL Recognized, RoHS
$39.90
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support
Actuator and Sensor Field Wireable — 7/8” Connection
- Zinc-Aluminum coupling nut
- UL approval
- 7/8” Female, Straight, 4-pin
- Plastic Housing
- Screw terminal Wire Termination
The Turck Actuator and Sensor Field Wireable - 7/8” Connection # B 4141-0/13.5 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| EAN | 4047101626704 |
| Customs tariff number | 8536904000 |
| Country of origin | DE |
| Weight | 57 g |
| Application | Signal |
| Connector A | Female, 7/8″-16 UN, Straight |
| Number of contacts | 4 |
| Connection mode | Screw/clamp connection |
| Housing material | Plastic, PBT |
| Coupling nut/screw material | Die-cast Zinc, CuZn, Nickel-plated |
| Acceptable cable diameter | 10…12 mm |
| Voltage | 600 V |
| Current | 9 A |
| Approvals | UL Recognized, RoHS |
| Connector Series | 7/8" minifast |
