Actuator and Sensor Junction Box - 7/8” Minifast I/O Ports
SKU: 4 RKF 30-X5-RSF70
4 · Male, 1″-16 UN, Side exit
$288.30
List price. Volume pricing available.
Authorized Dealer
Calibration Available
Nationwide Shipping
Expert Support

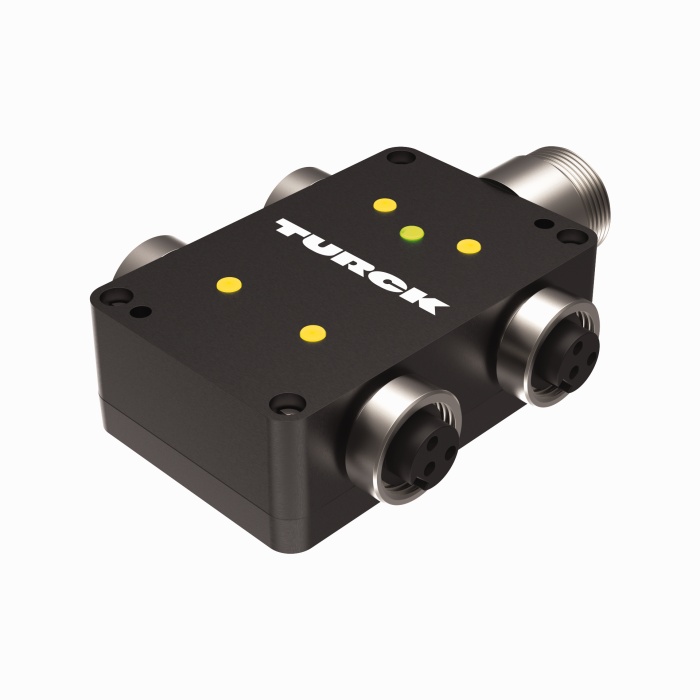

Actuator and Sensor Junction Box — 7/8” Minifast I/O Ports
- 7/8" Minifast Junction Box
- 4 ports
- Aluminum housing
- I/O port: 3-pin
The Turck Actuator and Sensor Junction Box - 7/8” Minifast I/O Ports 4 RKF 30-X5-RSF70 is manufactured by Turck. Valley Instrument Service is an authorized Turck dealer offering full sales support, NIST-traceable calibration, and expert technical assistance.
Have questions about this product?
Our team can help with product selection, specs, pricing, and application support.
Contact Us or Call (661) 327-8681| eCl@ss-Code (V5.1.4) | 27250313 -/- Communication interface, passive |
| Customs tariff number | 8536908530 |
| Country of origin | US |
| Weight | 562.86 g |
| Application | Signal |
| Number of ports | 4 |
| I/O Port | Female, 7/8″-16 UN |
| Number of contacts | 7 |
| Signals Per Port | 1 |
| Homerun connector | Male, 1″-16 UN, Side exit |
| Housing material | Aluminum |
| Current Per Port | 4 A |
| Ampacity | 4 A per port, total current 9 A |
| Connector Series | 7/8" minifast |
