Turck
Industrial automation sensors and connectivity
Turck Sensors · Pressure Sensors
365 of 365 filterable product families · 617 SKU variants in total
| Part # | Pressure Range (psi) | Process Connection | Electrical Output | Operating Voltage | Starts at | |
|---|---|---|---|---|---|---|

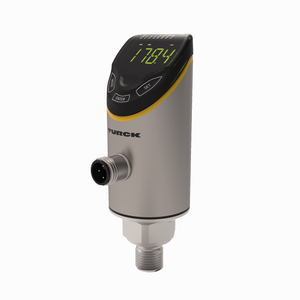

 | PS310-1-03-2UPN8-H1141Pressure Sensor - Relative Pressure: 0…1 Bar | 0…15 psi | 1/4″ NPT-18 male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS310-1V-01-2UPN8-H1141/XPressure Sensor - Relative Pressure: -1…1 Bar | -14…15 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS310-1V-03-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…1 Bar | -14…15 psi | 1/4″ NPT-18 male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS310-1V-04-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…1 Bar | -14…15 psi | G 1/4'' male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |

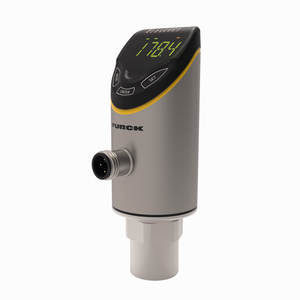

 | PS310-2.5V-01-2UPN8-H1141/XPressure Sensor - Relative Pressure: -1…2.5 Bar | -14…36 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-100-01-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…100 Bar | 0…1500 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-100-02-2UPN8-H1141Pressure Sensor - Relative Pressure: 0…100 Bar | 0…1500 psi | 1/4″ NPT-18 female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-10A-01-LI2UPN8-H1141Pressure Sensor - Absolute Pressure: 0…10 Bar | 0…150 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-10V-04-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…10 Bar | -14…150 psi | G 1/4'' male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-10V-04-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…10 Bar | -14…150 psi | G 1/4'' male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-10V-05-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…10 Bar | -14…150 psi | 7/16″-20 UNF male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-16A-03-LI2UPN8-H1141Pressure Sensor - Absolute Pressure: 0…16 Bar | 0…230 psi | 1/4″ NPT-18 male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |

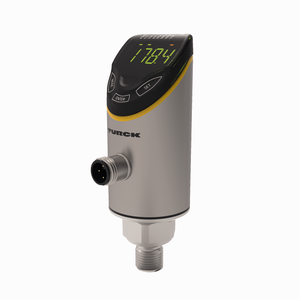

 | PS510-16V-03-2UPN8-H1141/XPressure Sensor - Relative Pressure: -1…16 Bar | -14…230 psi | 1/4″ NPT-18 male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-16V-04-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…16 Bar | -14…230 psi | G 1/4'' male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-250-01-2UPN8-H1141Pressure Sensor - Relative Pressure: 0…250 Bar | 0…3600 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-250-04-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…250 Bar | 0…3600 psi | G 1/4'' male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-25A-05-LI2UPN8-H1141Pressure Sensor - Absolute Pressure: 0…25 Bar | 0…360 psi | 7/16″-20 UNF male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-25V-01-2UPN8-H1141/XPressure Sensor - Relative Pressure: -1…25 Bar | -14…360 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-25V-02-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…25 Bar | -14…360 psi | 1/4″ NPT-18 female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-25V-03-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…25 Bar | -14…360 psi | 1/4″ NPT-18 male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-25V-05-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…25 Bar | -14…360 psi | 7/16″-20 UNF male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-400-01-2UPN8-H1141/XPressure Sensor - Relative Pressure: 0…400 Bar | 0…6000 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-400-02-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…400 Bar | 0…6000 psi | 1/4″ NPT-18 female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-400-04-2UPN8-H1141Pressure Sensor - Relative Pressure: 0…400 Bar | 0…6000 psi | G 1/4'' male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-40V-01-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…40 Bar | -14…600 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-40V-03-2UPN8-H1141Pressure Sensor - Relative Pressure: -1…40 Bar | -14…600 psi | 1/4″ NPT-18 male thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-40V-04-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…40 Bar | -14…600 psi | G 1/4'' male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-40V-05-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…40 Bar | -14…600 psi | 7/16″-20 UNF male thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-600-01-2UPN8-H1141Pressure Sensor - Relative Pressure: 0…600 Bar | 0…9000 psi | G 1/4'' female thread | 2 × switching output, IO-Link | 18…33 VDC | $469.50 |
 | PS510-600-01-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…600 Bar | 0…9000 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-250-01-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…250 Bar | 0…3600 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
| PS510-400-01-LI2UPN8-H1141Pressure Sensor - Relative Pressure: 0…400 Bar | 0…6000 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $469.50 |
 | PS510-25V-01-LI2UPN8-H1141Pressure Sensor - Relative Pressure: -1…25 Bar | -14…360 psi | G 1/4'' female thread | Switching output, Current output (3-wire), Voltage output (3-wire), IO-Link | 18…33 VDC | $455.80 |
 | PT0.05R-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT0.05V-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT0.1R-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT0.1VR-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT10PSIG-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT1PSIG-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT1PSIV-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT2PSIG-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |

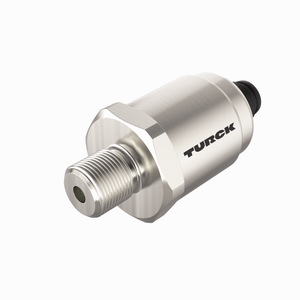

 | PT2PSIV-1503-I2-H1143/D840Pressure Transmitter - With Current Output (2-Wire) | — | 1/4″ NPT-18 male thread | — | 10…30 VDC | $429.10 |
 | PT100PSIG-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | 0…100 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $338.00 |
| PT100R-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | 0…1450.38 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $338.00 |
| PT10R-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | 0…145.04 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $338.00 |

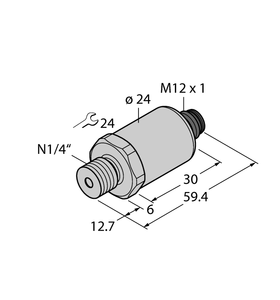

 | PT15PSIV-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | -15…15 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $338.00 |
| PT10000PSIG-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | 0…10000 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $326.60 |
| PT1000PSIG-2003-IX-H1143Pressure Transmitter - With Current Output (2-Wire) | 0…1000 psi | 1/4″ NPT-18 male thread | Current output (2-wire) | 10…30 VDC | $326.60 |
