Part #	Connector Series	Number of Ports	Homerun Connector	Housing Material	Starts at
8MB12Z-4P2-0.2-RSM 120/S90 8-port Junction Box with 1 1/8” Minifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 0.2 m Cable, 1 Signal per Port, Plastic Housing · 5 variants	M12 eurofast	8	Male, 1 1/8″-16 UN with cable, Side exit	Plastic	$228.80
VB 2X30-5 6-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 5 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	6	Cable, Side exit	Plastic	$270.90

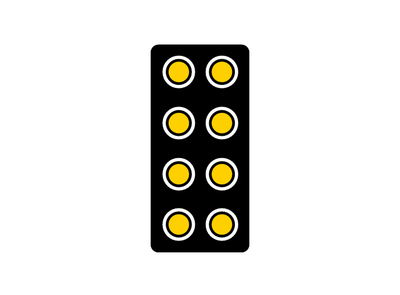

8MB12Z-4N2-1 8-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 1 m Cable, 1 Signal per Port, Plastic Housing · 6 variants	M12 eurofast	8	Cable, Side exit	Plastic	$164.50

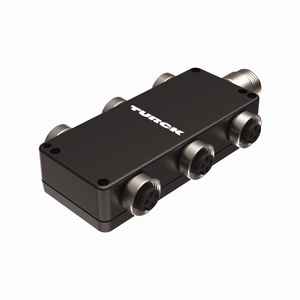

6 RKF 40-RSF80 Passive Actuator/Sensor Junction Box, 6 Ports - 7/8” Minifast I/O Ports, Side Exit 1" Male Home Run, 1 Signal per Port, Aluminum Housing	7/8" minifast	6	Male, 1″-16 UN, Side exit	Aluminum	$266.20
VB 80-N7X9-5/S90 8-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 5 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Cable, Side exit	Plastic	$265.50
8MBV12Z-4N2-5 8-port Junction Box with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 5 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Cable, Side exit	Plastic	$265.10
P-VBMV 40-CSV12 Hazardous Location Junction Box - 4 Port, M12 Eurofast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Aluminum Housing	M12 eurofast	4	Male, M23 × 1, Side exit	Aluminum	$264.90

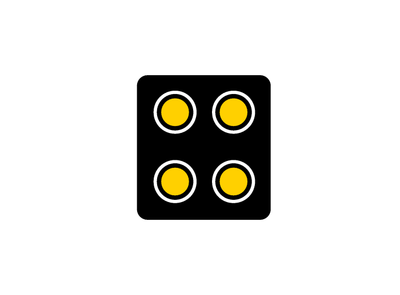

P-VBMV 44-CSV12 Hazardous Location Junction Box - 4 Port, M12 Eurofast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Aluminum Housing	M12 eurofast	4	Male, M23 × 1, Side exit	Aluminum	$264.90
4MB12Z-4P2-10/S90 4-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 10 m Cable, 1 Signal per Port, Plastic Housing · 4 variants	M12 eurofast	4	Cable, Side exit	Plastic	$128.50
8MB12Z-4N2-0.2-RSM 120 8-port Junction Box with 1 1/8” Minifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 0.2 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Male, 1 1/8″-16 UN with cable, Side exit	Plastic	$261.70
8MB12Z-4P2-5-RKM 120 8-port Junction Box with 1 1/8” Minifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 5 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Female, 1 1/8″-16 UN with cable, Side exit	Plastic	$261.70
8MB12Z-3-0.5-BSM 12-967/S771 8-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 1 Signal per Port, Plastic Housing · 6 variants	M12 eurofast	8	Male, M16 × 0.75, Side exit	Plastic	$183.20
TB-8M8M-4-0.3-BSFD 19/S90 Passive Actuator/Sensor Junction Box, 8 Ports - Extension Cable, M8 Picofast I/O Ports, Side Exit M16 Male Home Run, 0.3 m Cable, Plastic Housing · 2 variants	M8 picofast	8	Male, M16 × 0.75 with cable, Side exit	Plastic, PA6-GF30	$259.90
TB-8M8M-3P2-10 Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun, Side Exit, 10 m Cable, LED (PNP Circuit), Plastic Housing · 5 variants	M8 picofast	8	Cable, Side exit	Plastic, PA6-GF30	$192.90
4MB12Z-4N2-10 4-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 10 m Cable, 1 Signal per Port, Plastic Housing · 6 variants	M12 eurofast	4	Cable, Side exit	Plastic	$127.50
6 RKF 30-RSF80 Passive Actuator/Sensor Junction Box, 6 Ports - 7/8” Minifast I/O Ports, Side Exit 1" Male Home Run, 1 Signal per Port, Aluminum Housing	7/8" minifast	6	Male, 1″-16 UN, Side exit	Aluminum	$257.60
VB 60.5-CS19 Actuator and Sensor Junction Box - 6 Port, M12 Eurofast I/O Ports, Side Exit M23 Male Home Run, 2 Signals per Port, Plastic Housing	M12 eurofast	6	Male, M23 × 1, Side exit	Plastic	$257.00
8MBV12-4P2-CSV12 Actuator and Sensor Junction Box - 8 Port, M12 Eurofast I/O Ports, Top Exit M23 Male Home Run, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Male, M23 × 1, Top exit	Plastic	$256.80
8MB12-5P3-0.5BL-CSFD19 8-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Back Exit, 2 Signals per Port, Plastic Housing	M12 eurofast	8	Male, M23 × 1 with cable, Back exit	Plastic	$255.80
VB 60-RSF 120 Actuator and Sensor Junction Box - 8 Port	M12 eurofast	6	Male, 1 1/8″-16UN, Side exit	Plastic	$255.80
VB 60-RSF120/S3137 Actuator and Sensor Junction Box - 6 Port, M12 Eurofast I/O Ports, Side Exit 1 1/8" Male Home Run, 1 Signal per Port, Plastic Housing	M12 eurofast	6	Male, 1 1/8″-16UN, Side exit	Plastic	$255.80
VB 40.5-10 4-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 10 m Cable, 2 Signals per Port, Plastic Housing · 5 variants	M12 eurofast	4	Cable, Side exit	Plastic	$166.50
VB 2X20-CS16 Actuator and Sensor Junction Box - 4 Port, M12 Eurofast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Plastic Housing	M12 eurofast	4	Male, M23 × 1, Side exit	Plastic	$254.70
4 RXF 30-6M 4-port Junction Box with Cable Home Run - 7/8” Minifast I/O Ports, Side Exit, 6 m Cable, 1 Signal per Port, Aluminum Housing	7/8" minifast	4	Cable, Side exit	Aluminum	$254.20
6MBV12Z-5P3-5 6-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 5 m Cable, 2 Signals per Port, Plastic Housing	M12 eurofast	6	Cable, Side exit	Plastic	$254.10

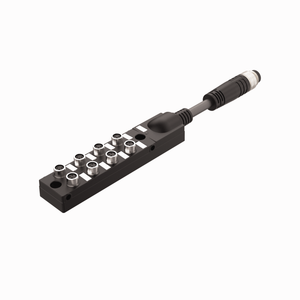

TB-8M8M-3N2-0.3-BSM14 Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun, Side Exit, 0.3 m Cable, LED (NPN Circuit), Plastic Housing · 2 variants	M8 picofast	8	Male, M16 × 0.75 with cable, Side exit	Plastic, PA6-GF30	$254.10
TB-8M8M-3P2-0.2-BSM14 Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun, Side Exit, 0.2 m Cable, LED (PNP Circuit), Plastic Housing · 7 variants	M8 picofast	—	—	—	$214.00
TB-8M8Z-3P2-5-BSM14 Passive Actuator/Sensor Junction Box, 8 Ports - M8, 3 pole I/O port with cable homerun, Side Exit, 5 m Cable, LED (PNP Circuit), Plastic Housing	M8 picofast	8	Male, M16 × 0.75 with cable, Side exit	Plastic, PA6-GF30	$254.10
VBKB 40-X5-CS12 Actuator and Sensor Junction Box - 4 Port, 1/2" Microfast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Plastic Housing	1/2" microfast	4	Male, M23 × 1, Side exit	Plastic	$253.70
8MBV12-4P2-0.2M-BSMK 12-967 8-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 1 Signal per Port, Plastic Housing	M12 eurofast	8	Male, M16 × 0.75, Side exit	Plastic	$253.50

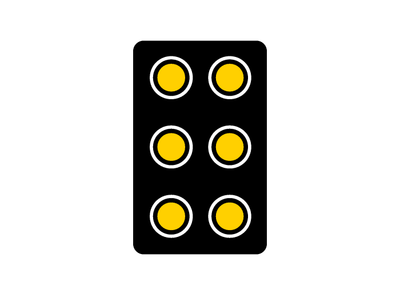

VB 60-N7X7-3 6-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 3 m Cable, 1 Signal per Port, Plastic Housing · 2 variants	M12 eurofast	6	Cable, Side exit	Plastic	$253.10
VB 40-P7X5-10/S90 4-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 10 m Cable, 1 Signal per Port, Plastic Housing · 2 variants	M12 eurofast	4	Cable, Side exit	Plastic	$200.80
P-4 RKF 40-CS12 Hazardous Location Junction Box - 4 Port, 7/8" Minifast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Aluminum Housing	7/8" minifast	4	Male, M23 × 1, Side exit	Aluminum	$252.00
P-4 RKF 40-CS12/C Hazardous Location Junction Box - 4 Port, 7/8" Minifast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Aluminum Housing	7/8" minifast	4	Male, M23 × 1, Side exit	Aluminum	$252.00
8MB12-4P2-0.5-CSCM 12 8-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 0.5 m Cable, 1 Signal per Port, Plastic Housing · 2 variants	M12 eurofast	8	Male, M23 × 1 with cable, Side exit	Plastic	$251.90
8MB12Z-4N2-1-CSCM 12 8-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 1 m Cable, 1 Signal per Port, Plastic Housing · 3 variants	M12 eurofast	8	Male, M23 × 1 with cable, Side exit	Plastic	$212.60
8MB12Z-4P2-1-CSCM 12 8-port Junction Box with M23 Multifast Home Run - M12 Eurofast I/O Ports, Side Exit, 1 m Cable, 1 Signal per Port, Plastic Housing · 5 variants	M12 eurofast	—	—	—	$212.60
VB 40-N7X5-CS12 Actuator and Sensor Junction Box - 4 Port, M12 Eurofast I/O Ports, Side Exit M23 Male Home Run, 1 Signal per Port, Plastic Housing	M12 eurofast	4	Male, M23 × 1, Side exit	Plastic	$251.10
4MB12Z-4P2-0.3-RSM 120/S90/CS12567 4-port Junction Box with 1 1/8” Minifast with cable Home Run - M12 Eurofast I/O Ports	M12 eurofast	—	—	—	$246.90

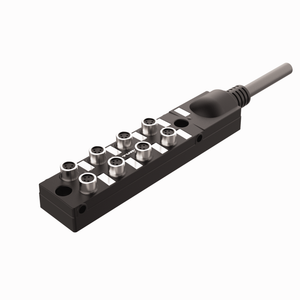

TB-8M8M-4-0.3-BSFD19-942 Passive Actuator/Sensor Junction Box, 8 Ports - M8, 4 pole I/O port with cable homerun, Side Exit, 0.3 m Cable, Plastic Housing	M8 picofast	8	Male, M16 × 0.75 with cable, Side exit	Plastic, PA6-GF30	$246.30
VB 1003-PX10-1.5-BSMK 14/S653/S771 10-port Junction Box with M16 Versafast with cable Home Run - M8 snap-on Picofast I/O Ports, Plastic Housing	M8 picofast	10	M16 × 0.75	Plastic	$245.90
6MB12Z-4-10/S90 6-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 10 m Cable, 1 Signal per Port, Plastic Housing · 3 variants	M12 eurofast	6	Cable, Side exit	Plastic	$142.50
8MB12-5P3-CS19 Actuator and Sensor Junction Box - 8 Port, M12 Eurofast I/O Ports, Top Exit M23 Male Home Run, 2 Signals per Port, Plastic Housing	M12 eurofast	8	Male, M23 × 1, Top exit	Plastic	$245.20
6MBV12Z-5-3 6-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Side Exit, 3 m Cable, 2 Signals per Port, Plastic Housing · 2 variants	M12 eurofast	6	Cable, Side exit	Plastic	$203.40
8MBV12-5P3-1BL 8-port Junction Box with Cable Home Run - M12 Eurofast I/O Ports, Back Exit, 2 Signals per Port, Plastic Housing · 2 variants	M12 eurofast	8	Cable, Back exit	Plastic	$236.80
VB 60-CS12 Actuator and Sensor Junction Box - 8 Port	M12 eurofast	6	Male, M23 × 1, Side exit	Plastic	$239.00
VB 60-CS12/S859 Actuator and Sensor Junction Box - 8 Port	M12 eurofast	6	Male, M23 × 1, Side exit	Plastic	$239.00
VB 40-3-CSM 12 4-port Junction Box with M23 Multifast with cable Home Run - M12 Eurofast I/O Ports, Side Exit, 3 m Cable, 1 Signal per Port, Plastic Housing	M12 eurofast	4	Male, M23 × 1 with cable, Side exit	Plastic	$237.80

Showing 4 of 7 differentiating specs. Click a row for the full datasheet.
