Ametek U.S. Gauge
Industrial pressure gauges — SOLFRUNT process gauges, liquid-filled gauges, specialty welding/ammonia/sprinkler/altitude gauges, and bimetallic thermometers.
Browse Ametek U.S. Gauge Products
94 products across 6 product lines
Gauge Accessories
27 products
Starting at $29.80
Browse
General Equipment Gauges
11 products
Starting at $17.70
Browse

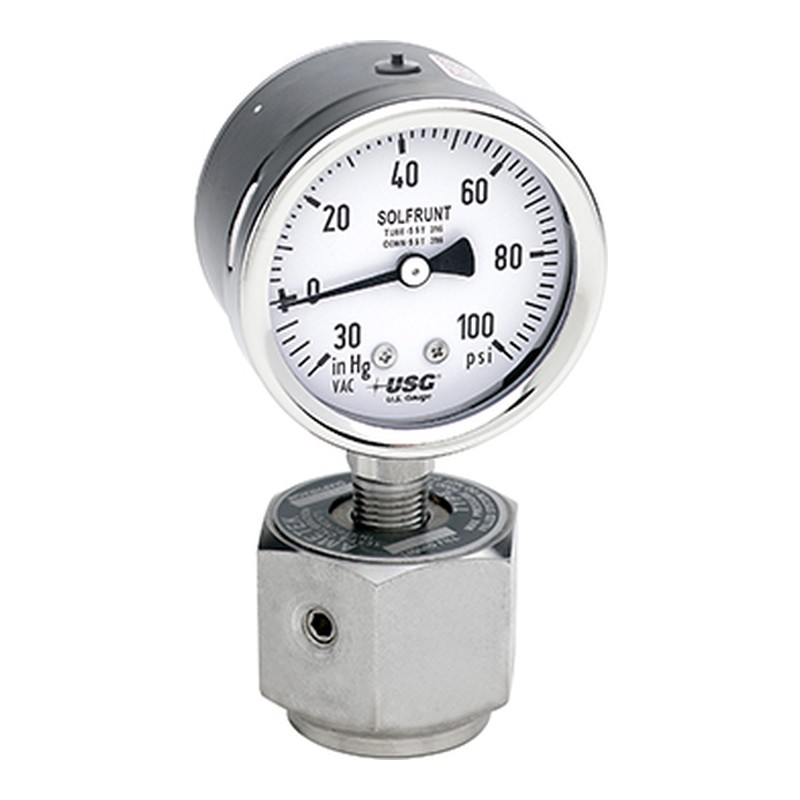

Liquid-Filled & Fillable Gauges
7 products
Starting at $41.40
Browse
SOLFRUNT Process Gauges
4 products
Starting at $193
Browse
Specialty Equipment Gauges
40 products
Starting at $24.20
Browse
Temperature Instruments
5 products
Starting at $146
BrowseFeatured Ametek U.S. Gauge Products
Popular instruments and equipment
Model DT-8300EX Explosion-Proof Digital Thermometer, Loop Powered
FM explosion-proof digital thermometer — NEMA 4X epoxy-coated aluminum housing, 4-digit LCD switchable F/C, -58 to 1,832 F via Type J/K thermocouple or Pt100 RTD input (probe not included), 1/2 in NPT. Externally powered from the 4-20 mA loop.
Model 1370 Receiver Gauge, 4-1/2 in 1933-Style Back Mount, 0-100 Scale
Pneumatic indicating receiver gauge in the SOLFRUNT 1933-style 4-1/2 in low-back-mount case — 3-15 PSI signal against a 0-100 process-variable inner scale, 316L stainless wetted parts, 1/4 in NPT. For panel-mounted pneumatic loop readout.

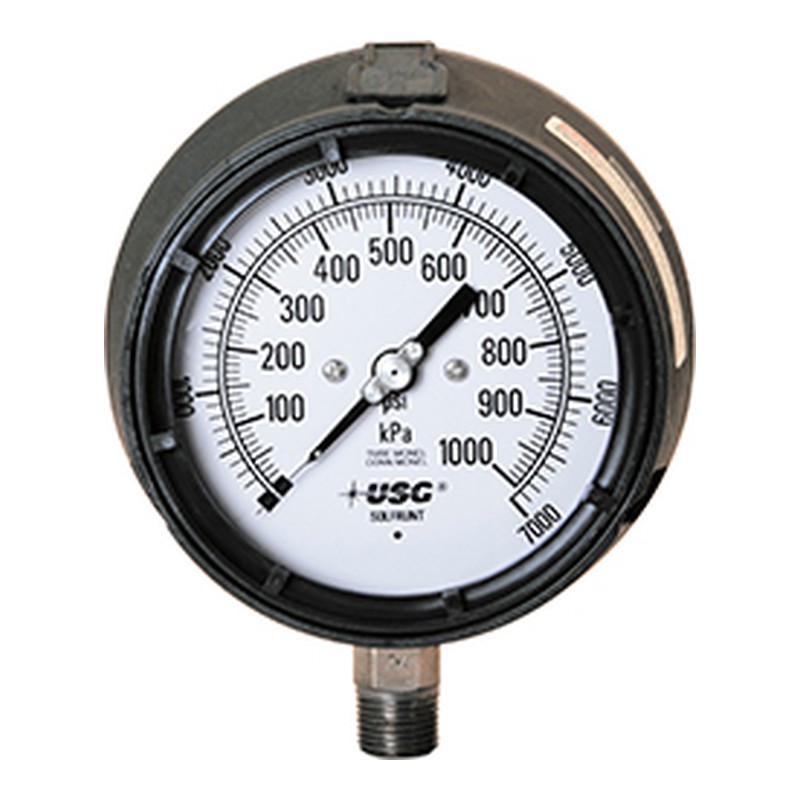

SOLFRUNT 4-1/2 in Monel Process Gauge Model 1986 (Configurable)
Corrosion-resistant SOLFRUNT process gauge with a Monel Bourdon tube and Monel process connection for aggressive and marine media — 4-1/2 in dial, ±0.5% of span accuracy (ASME B40.100 Grade 2A), EZ-Fill liquid-fillable case standard (glycerin, silicone, or mineral oil). Ranges from full vacuum to 0–10,000 PSI, ½ or ¼ in NPT low-mount connection. Configure connection, range, fill, and options to build your Spec Number.
SOLFRUNT 4-1/2 in Back-Mount Process Gauge Model 1933 (Configurable)
Low-back-mount (LBM) version of the SOLFRUNT 1931 — a 4-1/2 in 316L stainless steel process gauge with ±0.5% of span accuracy (ASME B40.100 Grade 2A) for panel and surface mounting where the connection enters from the back. Ranges from full vacuum to 0–6,000 PSI, ½ or ¼ in NPT. Configure connection, range, and options to build your Spec Number.
SOLFRUNT 4-1/2 in Process Gauge Model 1931 (Configurable)
AMETEK U.S. Gauge 4-1/2 in SOLFRUNT process gauge with 316L stainless steel wetted parts and a low-mount connection — ±0.5% of span accuracy (ASME B40.100 Grade 2A), micro-adjustable pointer, and a corrosion-resistant 300 Series stainless movement. Supplied dry or EZ-Fill liquid-fillable (glycerin, silicone, or mineral oil) for vibration and pulsation service. Ranges from full vacuum to 0–6,000 PSI, ½ or ¼ in NPT. Configure connection, range, fill, and options to build your Spec Number.
Model ADJ Adjustable-Angle Bimetallic Thermometer
Adjustable-angle bimetallic thermometer in 3 in and 5 in — 300 Series stainless case and stem, external-reset movement, ±1% of span (ASME B40.3). The head rotates and tilts for reading from any angle. Stem lengths 2-1/2 to 12 in; ranges from 0–200 °F to 200–1000 °F. Configured to order.
