Mansfield & Green Type T hydraulic and PK II pneumatic deadweight testers, hand pumps and rebuild parts, quoted by model and serial number.

Featured Ametek M&G Products

Popular instruments and equipment

Ametek M&G Type T Hydraulic Deadweight Tester, Imperial Dual-Column Dual-Piston with Dual Weight Sets (High-Accuracy, Configurable) # DM-TQ-
Ametek M&G

Type T Hydraulic Deadweight Tester, Imperial Dual-Column Dual-Piston with Dual Weight Sets (High-Accuracy, Configurable)

Top-of-line imperial Type T hydraulic deadweight tester at ±0.015% reading accuracy. Dual-column configuration with two interchangeable pistons (low + high range) and a dedicated weight set per piston, so high-range and low-range work proceed without reconfiguration. NIST traceable, local gravity correction + calibration data included. Configure pressure range, pressure medium, and o-ring material to build your part number.

Request Quote →
Ametek M&G Type T Hydraulic Deadweight Tester, Metric Dual-Column Dual-Piston with Dual Weight Sets (High-Accuracy, Configurable) # DM-TQ-
Ametek M&G

Type T Hydraulic Deadweight Tester, Metric Dual-Column Dual-Piston with Dual Weight Sets (High-Accuracy, Configurable)

Top-of-line metric Type T hydraulic deadweight tester at ±0.015% reading accuracy. Dual-column configuration with two interchangeable pistons (low + high range) and a dedicated weight set per piston so high-range and low-range work proceed without reconfiguration. NIST traceable, local gravity correction + calibration data included. Configure pressure range, pressure medium, and o-ring material to build your part number.

Request Quote →
Ametek M&G Type T Hydraulic Deadweight Tester, Metric Single-Column Single-Piston High-Accuracy (Configurable) # TSQ-
Ametek M&G

Type T Hydraulic Deadweight Tester, Metric Single-Column Single-Piston High-Accuracy (Configurable)

Metric single-column, single-piston/cylinder hydraulic deadweight tester at ±0.015% reading accuracy — highest accuracy class in the metric Type T DWT line. NIST traceable, local gravity correction + calibration data included. 18 range models (6 ranges × 3 unit systems: kg/cm², bar, kPa). Configure pressure range, pressure medium, and o-ring material to build your part number.

Request Quote →
Ametek M&G Type T Hydraulic Deadweight Tester, Metric Dual-Column Dual-Piston (Configurable) # DM-TQ-
Ametek M&G

Type T Hydraulic Deadweight Tester, Metric Dual-Column Dual-Piston (Configurable)

Metric dual-column, dual piston/cylinder hydraulic deadweight tester. Side-by-side columns enable comparative calibrations and differential measurements. ±0.100% standard accuracy (±0.025% optional via calibration upgrade). NIST traceable. 9 range models across kg/cm², bar, and kPa unit systems. Configure pressure range, calibration data, pressure medium, and o-ring material to build your part number.

Request Quote →
Ametek M&G Type T Hydraulic Deadweight Tester, Metric Single-Column Single-Piston (Configurable) # TSQ-
Ametek M&G

Type T Hydraulic Deadweight Tester, Metric Single-Column Single-Piston (Configurable)

Metric single-column, single-piston/cylinder hydraulic deadweight tester at ±0.025% reading accuracy (standard). NIST traceable with full calibration data included in the base price. 20 range models across kg/cm², bar, and kPa unit systems, spanning 1 to 100,000 kPa (or equivalent in other units). Configure pressure range, gravity correction, pressure medium, and o-ring material to build your part number.

Request Quote →
Ametek M&G Type T Hydraulic Deadweight Tester, Imperial Dual-Column Dual-Piston (Configurable) # DM-T-
Ametek M&G

Type T Hydraulic Deadweight Tester, Imperial Dual-Column Dual-Piston (Configurable)

Imperial dual-column, dual piston/cylinder hydraulic deadweight tester. Side-by-side columns enable comparative calibrations and differential measurements; each model ships with both a low-range and a high-range piston up to 15,000 PSI. ±0.100% standard accuracy (±0.025% optional), NIST traceable. Configure pressure range, calibration data, pressure medium, and o-ring material to build your part number.

Request Quote →

Ametek M&G at Valley Instrument

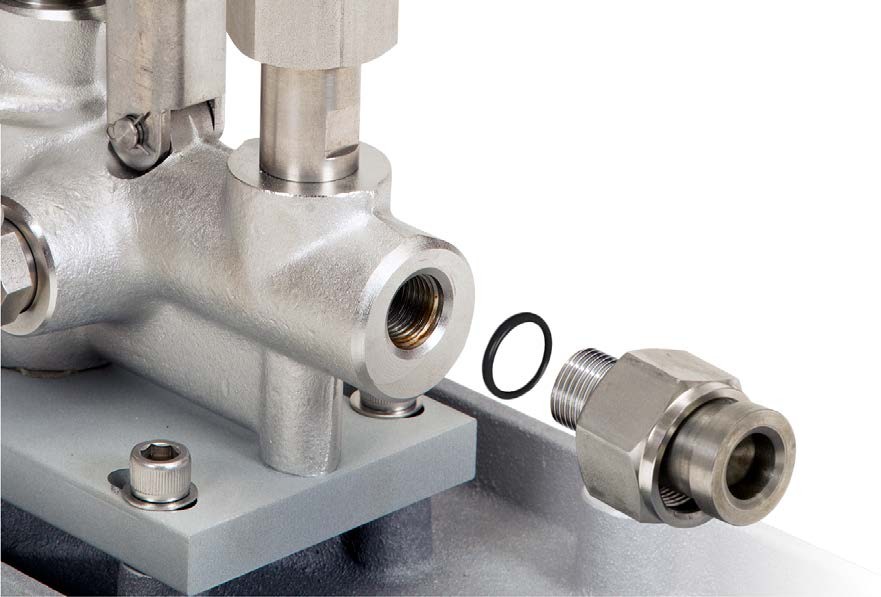

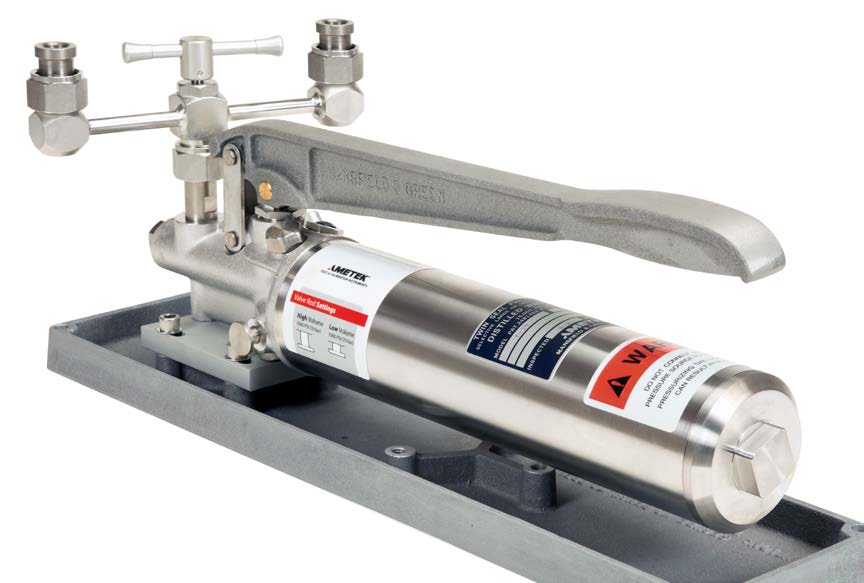

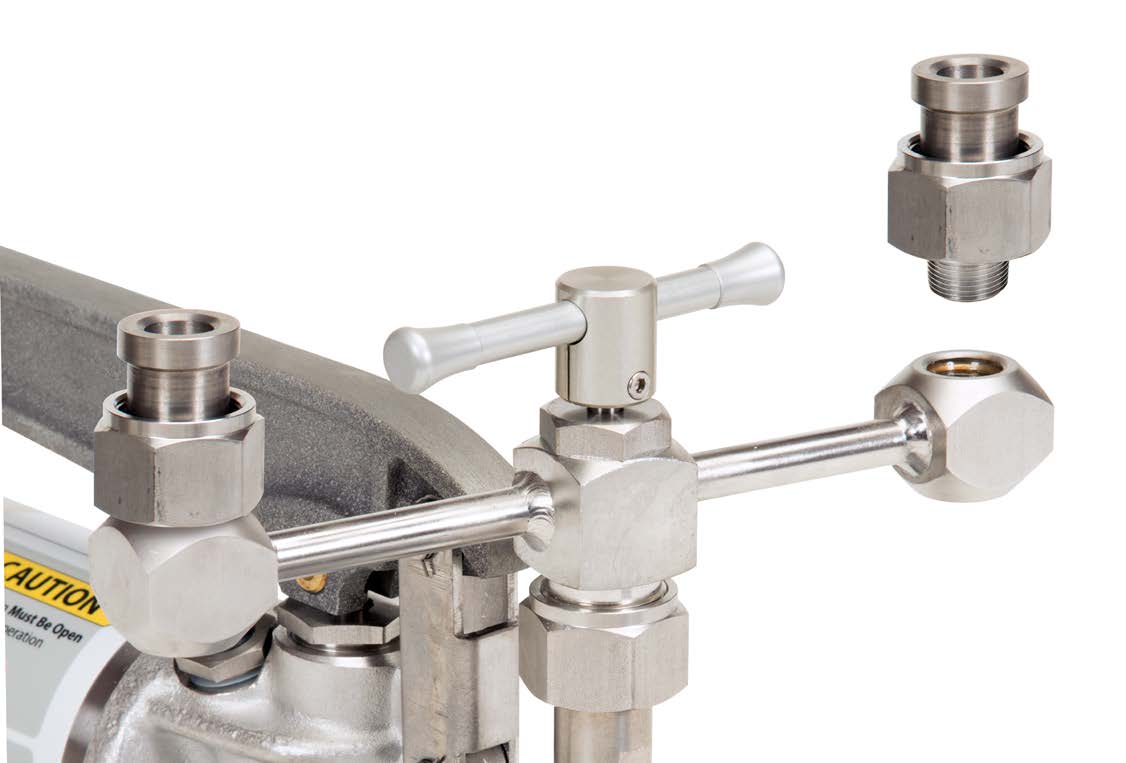

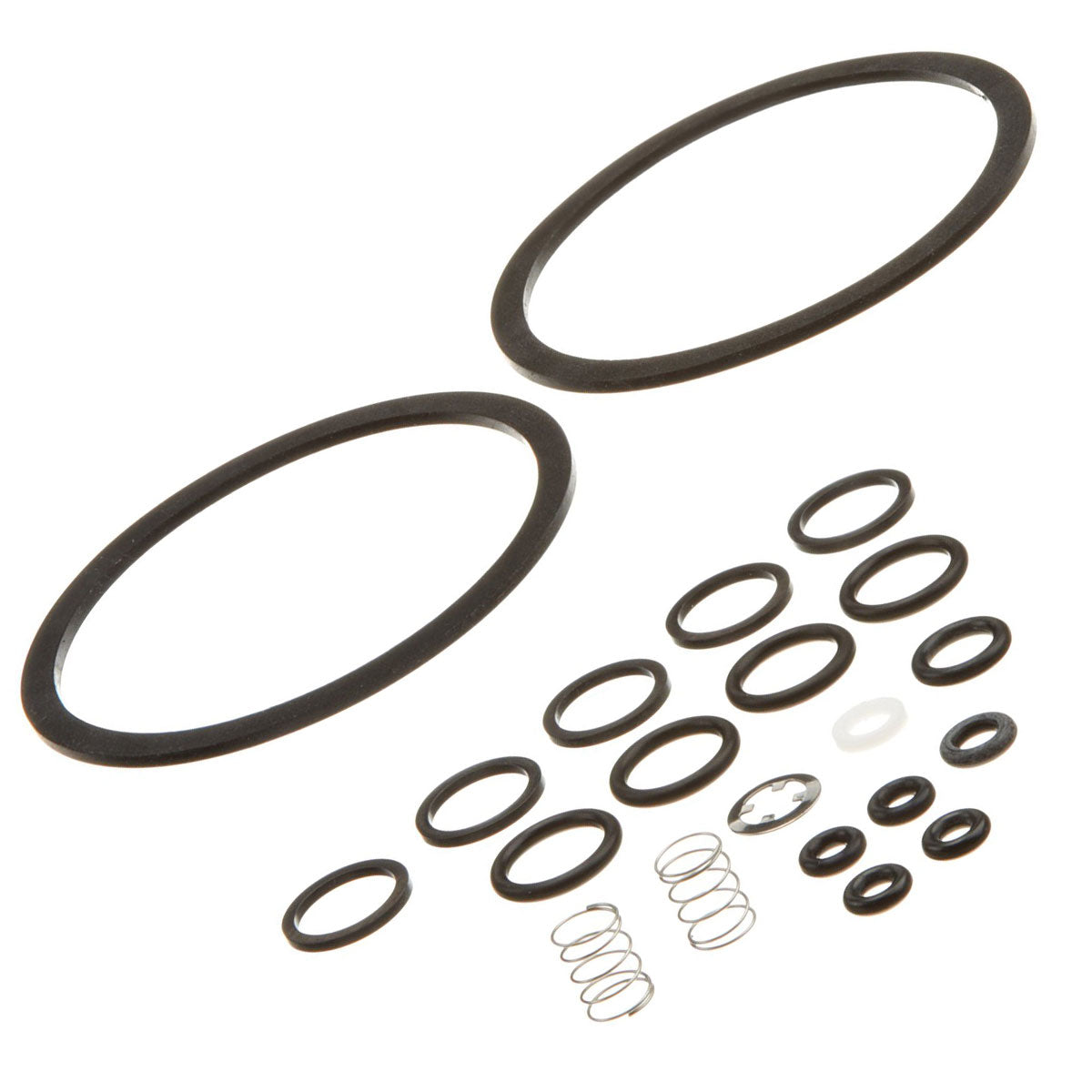

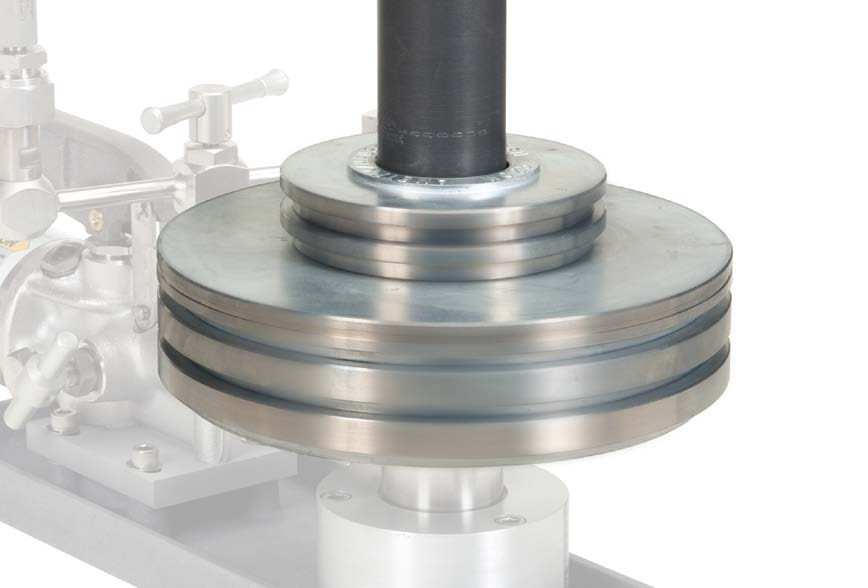

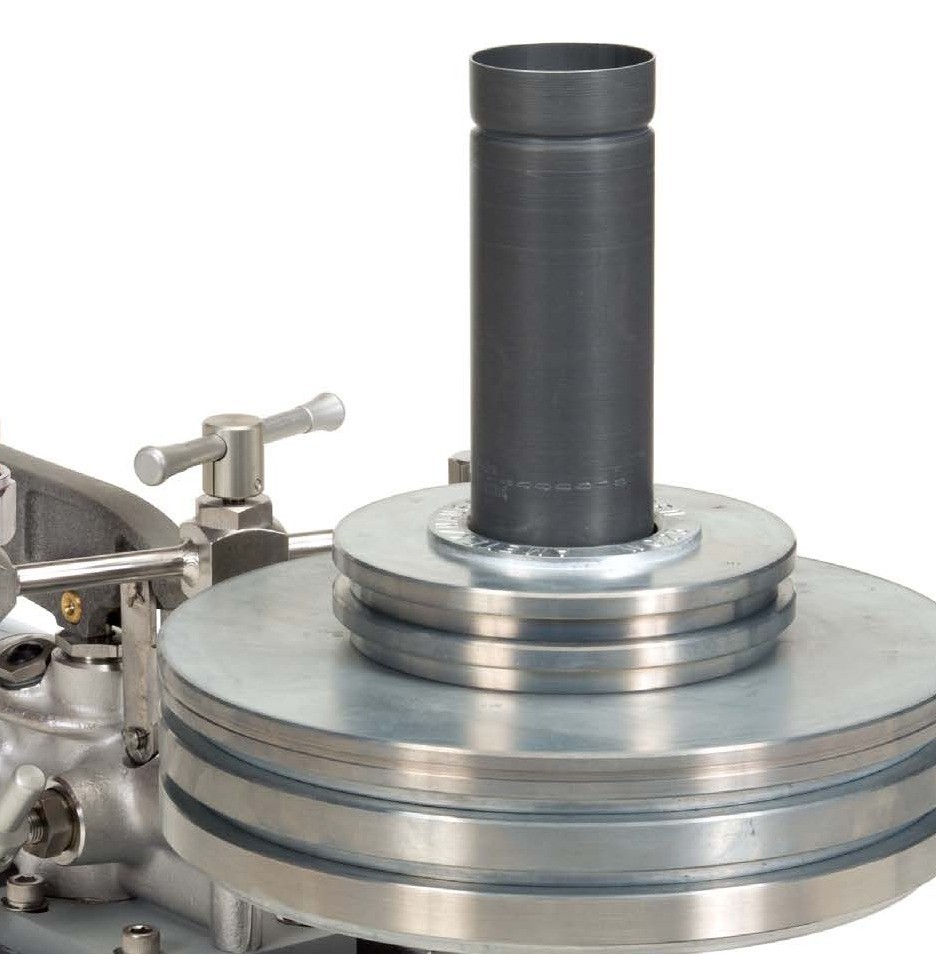

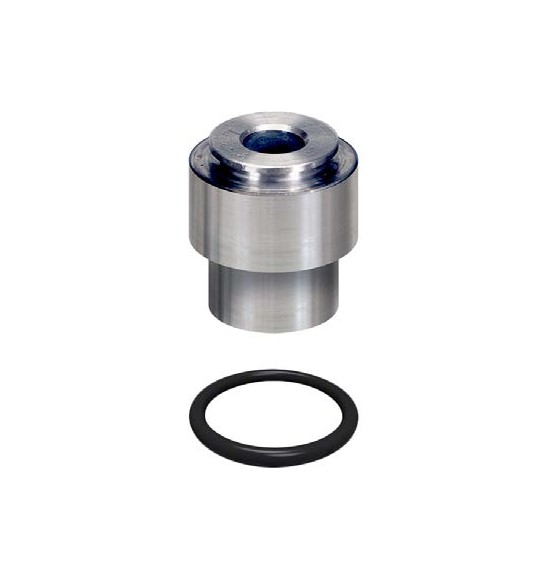

Mansfield & Green, an AMETEK brand, builds primary pressure standards: Type T hydraulic deadweight testers and PK II pneumatic testers, together with the hand pumps and accessories and parts that keep them in service, from piston and cylinder assemblies to O-ring kits and weight carriers.

A deadweight tester is specified by pressure range, unit, accuracy class, and whether it carries one or two piston assemblies; send us those details, or the model and serial number of the tester you are servicing, and we will quote the instrument or the exact rebuild parts. We support the M&G line alongside the Crystal and Jofra calibrators from the same AMETEK group.
